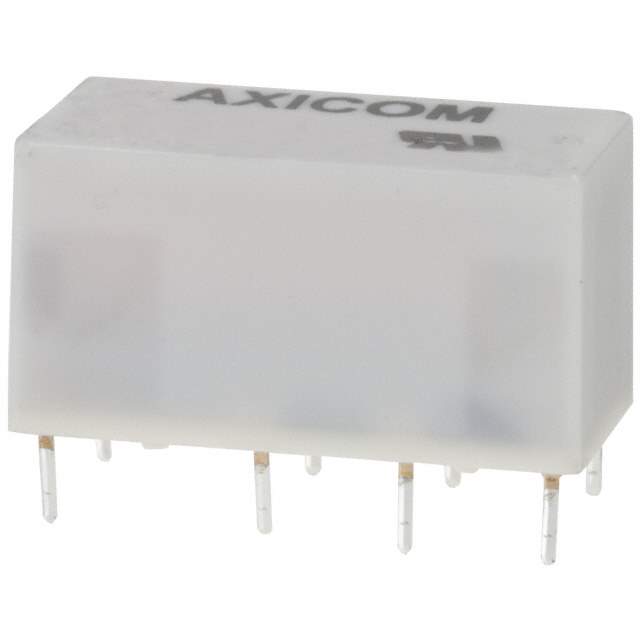

V23105-A5003-A201

Part No V23105-A5003-A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 12V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 6ms
Release Time 4ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 150 mW
Coil Resistance 960 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 043553-V23105-A5003-A201
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23105-A5003-A201 CAD Model

Description

V23105-A5003-A201 from TE Connectivity is a power relay in the over-2-amp class designed for switching tasks in control, interface, and power distribution circuits. Components in this category are commonly selected for industrial controls, building automation, transportation electronics, test equipment, and other systems that require dependable isolation between low-power control logic and higher-power loads. Engineers often consider TE Connectivity relays for established brand support, broad application fit, and integration into maintenance or replacement programs. For new designs, this part should be reviewed carefully against current technical and supply requirements because the published lifecycle status is information not available. RoHS compliance information is also not available from the provided input, so environmental compliance should be confirmed through the official TE Connectivity datasheet, manufacturer declarations, or authorized distribution channels before release to production. This part is best approached as a sourcing-verified relay solution rather than a specification-assumed selection.
