ADC121S021CISD/NOPB

Part No ADC121S021CISD/NOPB
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 12BIT 1CH 200KSPS 6WSON
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 12
Sampling Rate 200k
Number of Inputs 1
Input Type Single Ended
Data Interface SPI, DSP
Configuration S/H-ADC
Number of A/D Converters 1
Reference Type Supply
Analog Supply Voltage 2.7 V to 5.25 V
Digital Supply Voltage 2.7 V to 5.25 V
Temperature Range - Operating -40°C to 85°C

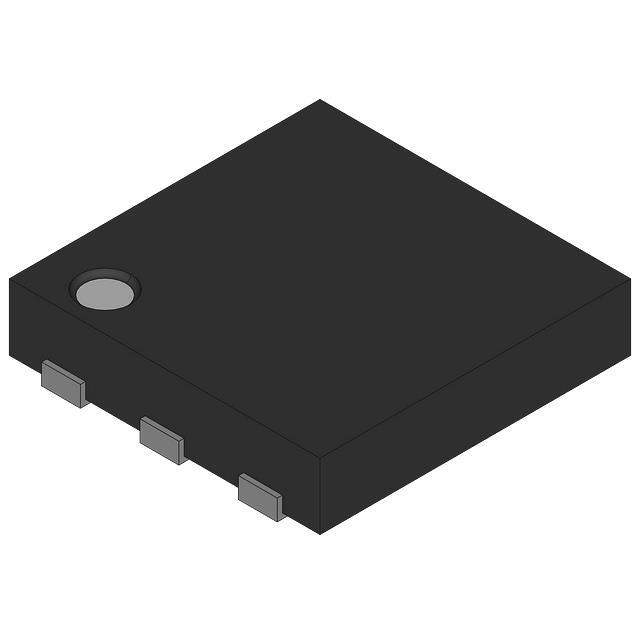

Case / Package 6-WSON (2.2x2.5)
Win Source Part Number 1014072-ADC121S021CISD/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADC121S021CISD/NOPB CAD Model

Description

Product Overview: ADC121S021CISD/NOPB

The ADC121S021CISD/NOPB is a precision analog-to-digital converter (ADC) developed by Texas Instruments, designed to provide high-performance data conversion in a compact, surface-mount package. This device is ideal for applications that require accurate and fast digitization of analog signals, such as in medical instrumentation, industrial control systems, and battery-operated devices.

Key Features

  • Resolution: The ADC121S021CISD/NOPB offers a 12-bit resolution, ensuring fine detail in the conversion process for precise measurement applications.
  • Single Channel: It features a single analog input channel, making it suitable for systems that require a dedicated ADC for a specific signal.
  • Sample Rate: With a sample rate of up to 200 kSPS (kilo-samples per second), this ADC is capable of handling high-speed signal processing without significant latency.
  • Low Power Consumption: Designed for power-sensitive applications, it operates with a low power consumption, making it ideal for portable and remote sensing devices.
  • Supply Voltage: The device operates on a supply voltage ranging from 2.7V to 5.25V, providing flexibility in various system power designs.
  • Interface: The ADC121S021CISD/NOPB communicates via a simple serial interface compatible with several microcontrollers, simplifying system integration.
  • No Pipeline Delays: It features a successive approximation register (SAR) architecture, which means it does not have pipeline delays, making it easier to manage in real-time systems.

Applications

This versatile ADC is suited for a wide range of applications, including:

  • Portable Devices
  • Data Acquisition Systems
  • Medical Instruments
  • Industrial Controls
  • Battery-Powered Instruments

Quality and Reliability

The ADC121S021CISD/NOPB is available in a small, lead-free, 6-pin WSON package, which is RoHS compliant, ensuring adherence to the latest environmental standards. Texas Instruments is known for its commitment to quality, and this product is no exception, with rigorous testing to ensure high reliability and performance under various conditions.

With its combination of accuracy, speed, low power, and ease of use, the ADC121S021CISD/NOPB from Texas Instruments is an excellent choice for designers looking to enhance their systems with high-quality data conversion capabilities.
