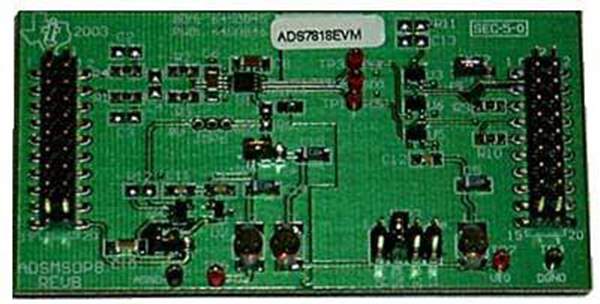

The ADS7818EVM is a compact evaluation module presented by Texas Instruments (TI) designed for the performance assessment of the ADS7818, a 12-bit, 200kHz sampling analog-to-digital converter (ADC). This evaluation module (EVM) is an essential tool for designers and engineers looking to integrate the ADS7818 ADC into their applications, providing a quick and easy way to test the functionality and features of the device.

Key Features of the ADS7818EVM:

• Plug-and-Play: The EVM is ready to use out of the box, requiring no additional software for basic operation. This enables immediate testing and evaluation of the ADS7818.
• User-Friendly Interface: The module includes a user-friendly interface for connecting to a host system, which facilitates seamless data acquisition and analysis.
• Flexible Power Options: The ADS7818EVM can be powered through the host system or via an external power supply, providing versatility for various testing environments.
• Onboard Reference: An onboard voltage reference ensures accurate ADC performance and eliminates the need for external reference components.
• Comprehensive Documentation: TI provides detailed documentation, including a user guide and application notes, to assist users in maximizing the capabilities of the EVM.

Applications:

The ADS7818EVM is suitable for a wide range of applications that require high-speed and high-resolution data conversion. These applications include:

• Data acquisition systems
• Medical instruments
• Industrial process control
• Scientific instrumentation

Technical Specifications:

• Resolution: 12-bit
• Sampling rate: Up to 200kHz
• Interface: SPI-compatible serial interface

The ADS7818EVM offers engineers a straightforward and efficient platform for testing the ADS7818 ADC, ensuring that it meets the specific requirements of their applications. With its robust design and comprehensive support materials, the EVM is an invaluable tool for accelerating development time and achieving a faster time-to-market.
