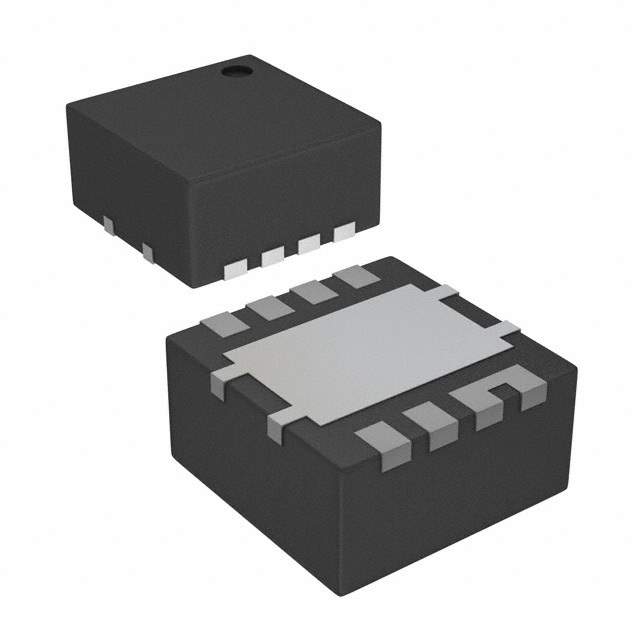

CSD87335Q3D

Part No CSD87335Q3D
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description Synchronous Buck NexFET Power Block
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Series NexFET
Packaging Reel - TR
FET Type 2 N-Channel (Dual) Asymmetrical
FET Feature Standard
Drain Source Voltage 30V
Vgs(th) (Maximum) @ Id 1.9V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 7.4nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 1050pF @ 15V
Power - Max 6W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-PowerLDFN
Manufacturer Package 8-LSON (3.3x3.3)
Win Source Part Number 1163556-CSD87335Q3D
Manufacturer Homepage www.ti.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CSD87335Q3D
Introduction Date February 24, 2016
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CSD87335Q3D CAD Model

Description

Product Overview: Texas Instruments CSD87335Q3D

The CSD87335Q3D is a state-of-the-art synchronous buck NexFET™ power block from Texas Instruments (TI), designed to deliver high efficiency, reliability, and performance for a wide range of applications. This compact power solution integrates two power MOSFETs in a single package, making it an ideal choice for space-constrained applications.

Key Features

  • High-Efficiency Power Conversion: The CSD87335Q3D offers an optimal combination of low on-resistance and switching losses, which results in high efficiency and reduced thermal stress on the system.
  • Advanced Packaging: Utilizing TI's innovative SON 3.3mm x 3.3mm package, this power block is designed for minimal parasitic inductance and resistance, thus improving overall performance.
  • Dual MOSFET Design: The integration of high-side and low-side MOSFETs simplifies the design and enhances power density, making it suitable for compact designs.
  • Optimized for Switching Applications: With its fast switching capabilities, the CSD87335Q3D is optimized for synchronous buck applications, providing efficient power management.
  • Robust Thermal Performance: The power block is designed to handle significant power and maintain performance even under high temperature environments.

Applications

The versatility of the CSD87335Q3D makes it a perfect fit for a variety of applications, including:

  • Point of Load (POL) solutions
  • Networking and telecommunications equipment
  • Computing and server systems
  • Gaming consoles
  • Graphics cards and other high-performance computing applications

Technical Specifications

Parameter Value
Package Type SON 3.3mm x 3.3mm
On-Resistance (RDS(on)) Low
Continuous Drain Current (ID) High
Input Voltage (VIN) Optimized Range
Operating Temperature Extended Range

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments official website or contact their support team.
