The Texas Instruments CSD87502Q2T is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high performance in a compact package. This advanced semiconductor device is optimized for power conversion applications, including DC-DC converters, motor drives, and other power management solutions where efficiency and space constraints are critical considerations.

Key Features

• Low On-Resistance: The CSD87502Q2T boasts an ultra-low on-resistance (R_DS(on)) which significantly reduces power losses during operation, enhancing overall system efficiency.
• High Continuous Drain Current: With a high continuous drain current (I_D), this MOSFET can handle significant power throughput, making it suitable for demanding applications.

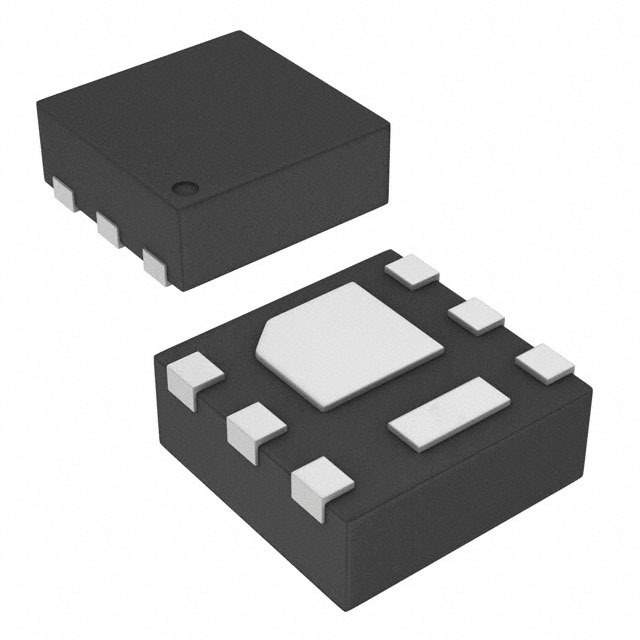

• Advanced Packaging: Housed in a compact SON 2x2 package, the CSD87502Q2T minimizes the PCB footprint, allowing for smaller and more streamlined designs.
• Thermal Management: The device features exceptional thermal characteristics, ensuring reliable performance even under high temperature conditions.

Applications

The versatility of the CSD87502Q2T makes it ideal for a wide range of applications, including:

• Point of Load (POL) conversions
• Synchronous buck converters
• Server and telecom power supplies
• Battery management systems
• DC-DC modules

Technical Specifications

Conclusion

The CSD87502Q2T from Texas Instruments represents a remarkable blend of power handling capability and efficiency in a small form factor. It is engineered to meet the needs of modern power management systems, offering designers a reliable and high-performance component for their next-generation electronic products.
