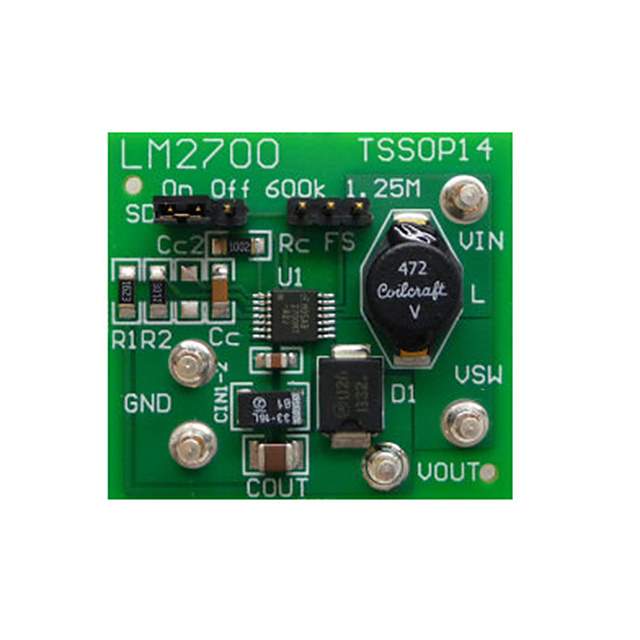

Product Overview: LM2700MT-ADJEV/NOPB

The LM2700MT-ADJEV/NOPB is a versatile and efficient step-up PWM DC/DC converter evaluation module from Texas Instruments, designed to provide engineers with a robust platform for testing and developing applications that require voltage boost functionality. This evaluation module is part of the LM2700 series which is known for its high-frequency operation and integrated features.

Key Features

• Adjustable Output: The LM2700MT-ADJEV/NOPB provides an adjustable output that can be fine-tuned for a wide range of applications, ensuring maximum flexibility for engineers.
• High Efficiency: With its advanced design, this module achieves high efficiency, which is essential for portable and battery-powered applications where power conservation is critical.
• Wide Input Voltage Range: The device supports a broad input voltage range, accommodating various power sources and making it suitable for diverse applications.
• High Switching Frequency: The high switching frequency of up to 2.2 MHz allows for the use of small surface-mount inductors and capacitors, reducing the overall solution size and improving response times.
• Thermal Protection: The module includes thermal shutdown protection, safeguarding the device against potential damage from overheating.

Applications

The LM2700MT-ADJEV/NOPB is ideal for a variety of applications, including but not limited to:

• Portable devices
• Handheld instruments
• Battery-powered equipment
• Positive to negative converters (inverting applications)
• Boost converters in distributed power systems

Easy to Use

This evaluation module is designed with ease of use in mind. It comes with pre-installed components, allowing for immediate setup and testing. The onboard connectors and test points provide convenient access for measuring and evaluating the circuit's performance. This enables quick prototyping and accelerates the development process for engineers working on power supply solutions.

Reliability and Support

As with all Texas Instruments products, the LM2700MT-ADJEV/NOPB is backed by the company's commitment to high-quality manufacturing and customer support. Engineers can rely on TI's extensive documentation and support network for assistance during the development process.
