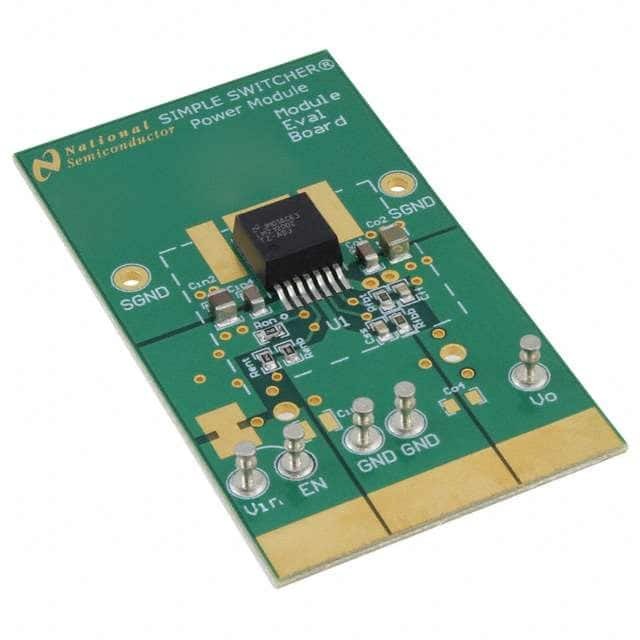

The LMZ12002EVAL/NOPB is an evaluation board designed by Texas Instruments to demonstrate the capabilities and performance of the LMZ12002 SIMPLE SWITCHER® power module. This power module is a highly efficient, easy-to-use step-down DC-DC converter capable of delivering up to 2A of output current. The evaluation board provides a practical platform for designers to test the LMZ12002 module in various applications and configurations.

Key Features:

• Integrated Inductor: The LMZ12002 module includes a built-in inductor, which simplifies the design and reduces the external component count, leading to a compact solution for power supply designs.
• Wide Input Voltage Range: With an input voltage range of 4.5V to 20V, the LMZ12002 is versatile and suitable for a variety of input sources, including standard 5V, 12V, and 15V rails.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 6V, allowing for a wide range of applications that require different voltage levels.
• High Efficiency: The module boasts high efficiency, which minimizes heat generation and makes it ideal for use in thermally sensitive applications.
• Thermal Shutdown and Overcurrent Protection: Safety features such as thermal shutdown and overcurrent protection are built into the LMZ12002, ensuring reliable operation under various conditions.
• Easy-to-Use: The evaluation board is designed for ease of use, with pre-configured setup that allows for immediate testing and experimentation.

Applications:

The LMZ12002EVAL/NOPB evaluation board is suitable for a diverse range of applications, including:

• Telecommunications Equipment
• Networking Equipment
• Industrial Systems
• Consumer Electronics
• Test and Measurement Devices

With its robust design and versatile features, the LMZ12002EVAL/NOPB from Texas Instruments is an excellent tool for engineers and designers to validate and optimize the performance of the LMZ12002 power module in their specific applications.
