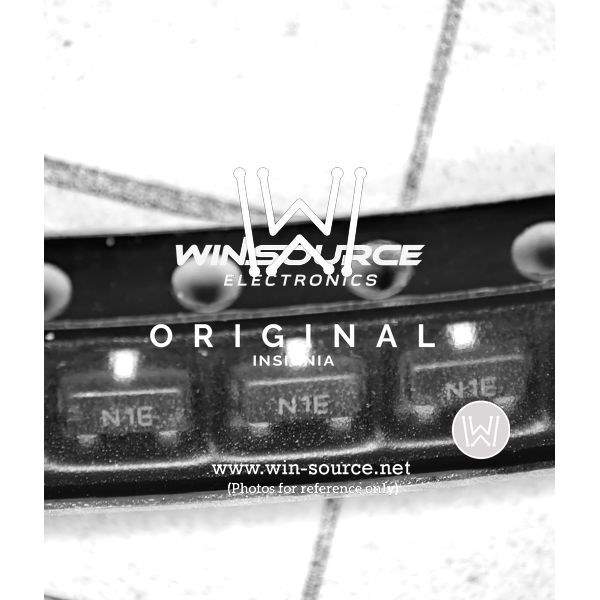

LM431AIM3X Real Image LM431AIM3X real image1552 LM431AIM3X Real Image
Same model may have multiple batches, images only for reference.

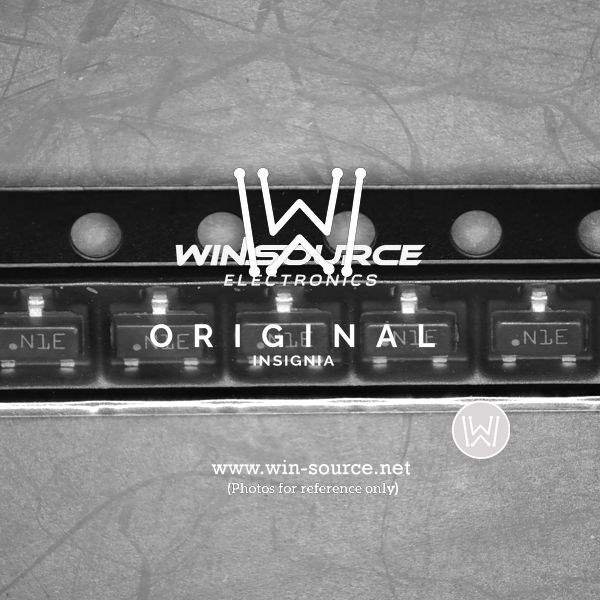

LM431AIM3X Real Image LM431AIM3X real image1552 LM431AIM3X Real Image
LM431AIM3X Real Image LM431AIM3X real image1552 LM431AIM3X Real Image
Same model may have multiple batches, images only for reference.

LM431AIM3X

Part No LM431AIM3X
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description V-Ref Adjustable 2.495V to 37V 100mA 3-Pin SOT-23 T/R / IC VREF SHUNT ADJ SOT23-3
Datasheet
LM431AIM3X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Adjustable
Nominal Output Voltage (Min/Fixed) 2.495V
Maximum Output Voltage 37V
Output Current 100mA
Tolerance ±2.2%
Temperature Coefficient 50ppm/°C Typical
Current - Cathode 1mA
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 092557-LM431AIM3X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM431
Introduction Date December 01, 1996
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LM431AIM3X CAD Model

Description

The LM431AIM3X by Texas Instruments is a high-performing, adjustable precision shunt regulator that offers superior performance and capabilities.

  • Output Voltage: Can be set to any value between Vref (approximately 2.5V) and 36V with two external resistors.
  • Typical Dynamic Output Impedance: 0.2Ω
