The LM5156DSSR is a high-performance, wide input range, non-synchronous boost converter from the globally recognized semiconductor manufacturer, Texas Instruments. Designed to cater to a variety of applications, the LM5156DSSR boasts an array of features that make it a versatile and efficient solution for power management challenges.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 3.0 V to 65 V, making it suitable for use in systems with varying supply voltages.
• High Efficiency: With its advanced design, the LM5156DSSR achieves high efficiency, which is critical for energy-sensitive applications.
• Adjustable Switching Frequency: Users can tailor the switching frequency from 100 kHz to 2.2 MHz, allowing optimization for size, efficiency, or other design parameters.
• Integrated High-Side MOSFET: The inclusion of an internal high-side N-channel MOSFET simplifies the design and reduces external component count.
• Thermal Shutdown: The device includes thermal shutdown protection to safeguard against overheating and potential damage.

Applications

The LM5156DSSR is ideal for a range of applications, including but not limited to:

• Industrial power supplies
• Automotive systems
• Telecommunications equipment
• Portable electronics
• Power conditioning for renewable energy sources

Package and Availability

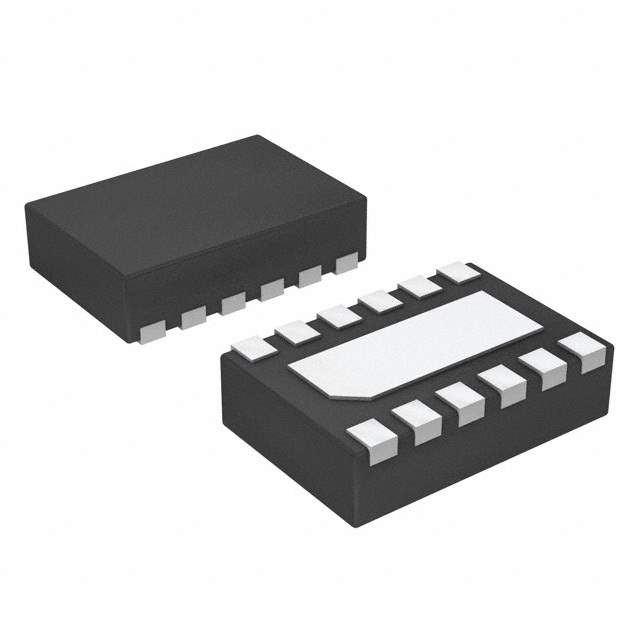

The LM5156DSSR comes in a small-outline package, specifically the WSON-10 package. This compact form factor is perfect for space-constrained applications. The device is available for order through Texas Instruments' official website or authorized distributors, ensuring easy access for designers and manufacturers worldwide.

Conclusion

With its wide input voltage range, high efficiency, and flexible design options, the LM5156DSSR from Texas Instruments stands out as a robust power management solution. Whether for industrial, automotive, telecom, or portable applications, this boost converter is engineered to meet stringent power requirements with reliability and precision.
