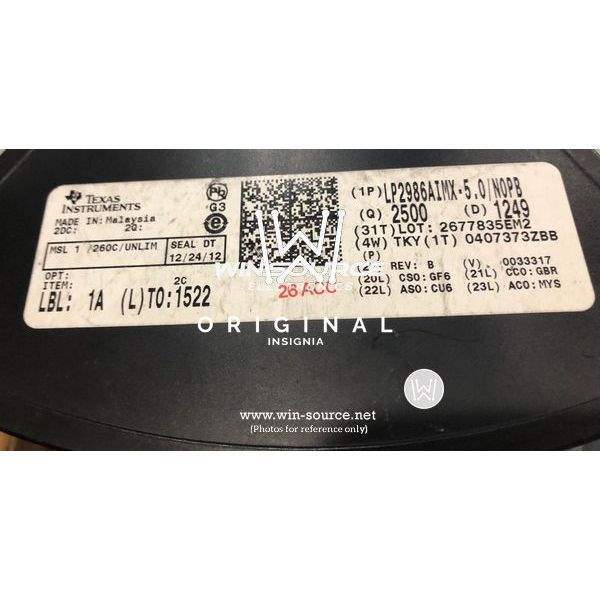

LP2986AIMX-5.0/NOPB Texas Instruments LP2986AIMX-5.0/NOPB Real Image LP2986AIMX-5.0/NOPB label picture
Same model may have multiple batches, images only for reference.
LP2986AIMX-5.0/NOPB Texas Instruments LP2986AIMX-5.0/NOPB Real Image LP2986AIMX-5.0/NOPB label picture
LP2986AIMX-5.0/NOPB Texas Instruments LP2986AIMX-5.0/NOPB Real Image LP2986AIMX-5.0/NOPB label picture
Same model may have multiple batches, images only for reference.

LP2986AIMX-5.0/NOPB

Part No LP2986AIMX-5.0/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.2A 8SOIC
Datasheet
LP2986AIMX-5.0/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.35V @ 200mA
Output Current 200mA
Operating Supply Current 120μA to 3.7mA
PSRR 65dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.18V @ 200mA
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 111683-LP2986AIMX-5.0/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LP2986AIMX-5.0/NOPB CAD Model

Description

The LP2986AIMX-5.0/NOPB is an advanced, high-performance, low dropout (LDO) regulator from Texas Instruments. It provides a steady and regulated output voltage of 5.0V with a maximum output current of 200mA.

  • Output Voltage: 5.0V
  • Maximum Output Current: 200mA
  • Dropout Voltage: 1.5V at maximum load
  • Quiescent Current: 15µA at full load
  • Package: Small, surface-mount
  • Environmental Compliance: RoHS compliant and lead-free
  • Protection Features: Built-in current limit and thermal protection
