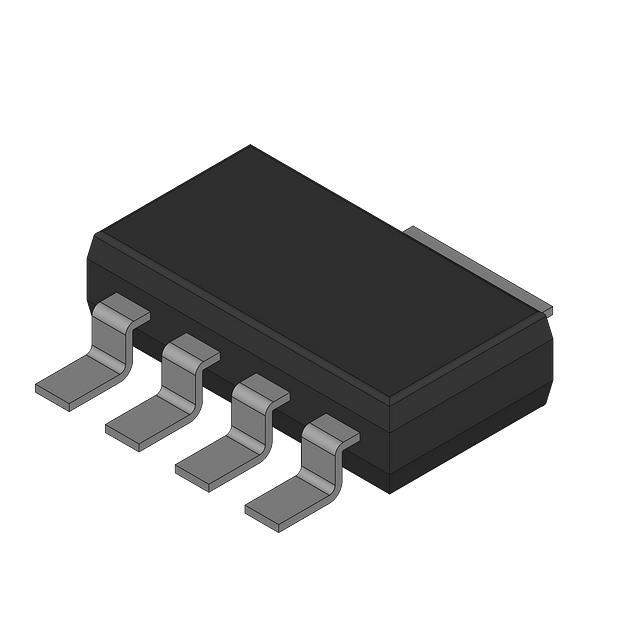

LP3852EMP-2.5/NOPB

Part No LP3852EMP-2.5/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 1.5A SOT223-5
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 7V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 0.44V @ 1.5A
Output Current 1.5A
Operating Supply Current 3mA to 10mA
PSRR 73dB to 57dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 0.26V @ 1.5A
Mounting SMD (SMT)
Case / Package SOT-223-5
Win Source Part Number 129947-LP3852EMP-2.5/NOPB
Ultra Librarian 3D Model Ultra Librarian LP3852EMP-2.5/NOPB CAD Model

Description

The LP3852EMP-2.5/NOPB is a high-performance, low-dropout voltage regulator from Texas Instruments, a renowned leader in semiconductor technology. This product is designed to meet the stringent requirements of today's advanced electronic devices, offering a combination of high accuracy, low noise, and fast response time.

  • Input Voltage Range: 2.5V to 7V
  • Output Current: 1.5A
  • Low Dropout Voltage: 385mV at full load (decreases at lower load conditions)
  • Applications: Powering high-performance processors, post regulators for switching supplies, and low voltage applications
  • Features: Fast transient response, high accuracy output voltage of 2% over line, load, and temperature, thermal shutdown, current limit, low ground pin current
  • Package: 5-pin SOT-223

In conclusion, the LP3852EMP-2.5/NOPB from Texas Instruments is a high-quality, high-performance, low-dropout voltage regulator suitable for a wide range of applications.
