Product Overview: LP8556TMX-E09/NOPB

The LP8556TMX-E09/NOPB is a high-efficiency, easy-to-use LED driver designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This LED driver is specifically engineered to meet the power management requirements of a wide range of applications, particularly in LED backlighting solutions for notebooks, tablets, and smartphones.

Key Features

• High-Efficiency LED Driver: The LP8556TMX-E09/NOPB is capable of driving LEDs with high efficiency, which translates into better battery life for portable devices and lower power consumption for all applications.
• Integrated Boost Converter: The device includes a built-in boost converter which steps up the input voltage to the level required to drive the LEDs at the desired brightness.
• SmartDim™ Technology: TI's proprietary SmartDim™ technology allows for smooth and precise control of LED brightness through a logarithmic dimming response, enhancing the user experience.
• Flexible Power Supply: This LED driver can operate over a wide input voltage range, making it versatile for various power supply conditions.
• PWM Dimming Interface: The device supports pulse-width modulation (PWM) dimming, which provides additional flexibility in controlling the brightness levels of the LEDs.
• Thermal Protection: The LP8556TMX-E09/NOPB is equipped with thermal shutdown protection, safeguarding the device and the LEDs from overheating.

Applications

The versatility of the LP8556TMX-E09/NOPB makes it an ideal choice for several applications, including:

• LED Backlighting for LCD Panels
• Notebook Computers
• Tablets and Smartphones
• Portable Media Players
• Automotive Interior Lighting

Quality and Reliability

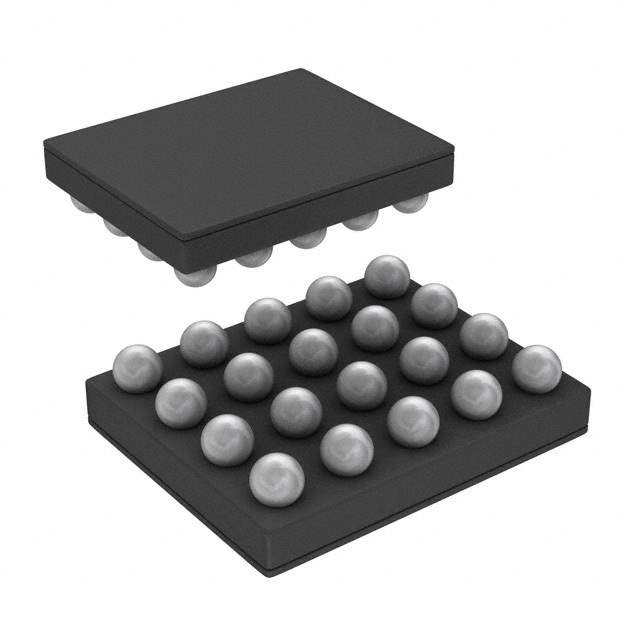

As with all Texas Instruments products, the LP8556TMX-E09/NOPB is designed to meet high standards of quality and reliability. The device is available in a small, lead-free package and is RoHS compliant, adhering to environmental standards. TI's commitment to excellence ensures that this LED driver provides a reliable solution for powering LEDs in a broad range of electronics.

Part Number Explanation

The part number LP8556TMX-E09/NOPB breaks down as follows:

• LP8556 - Product family designation
• TMX - Tape and reel packaging
• E09 - Product revision code
• NOPB - Indicates that the product does not contain lead (Pb) and is RoHS compliant

With its combination of efficiency, flexibility, and reliability, the LP8556TMX-E09/NOPB from Texas Instruments stands out as a top-tier choice for powering LED backlighting solutions in a multitude of electronic devices.
