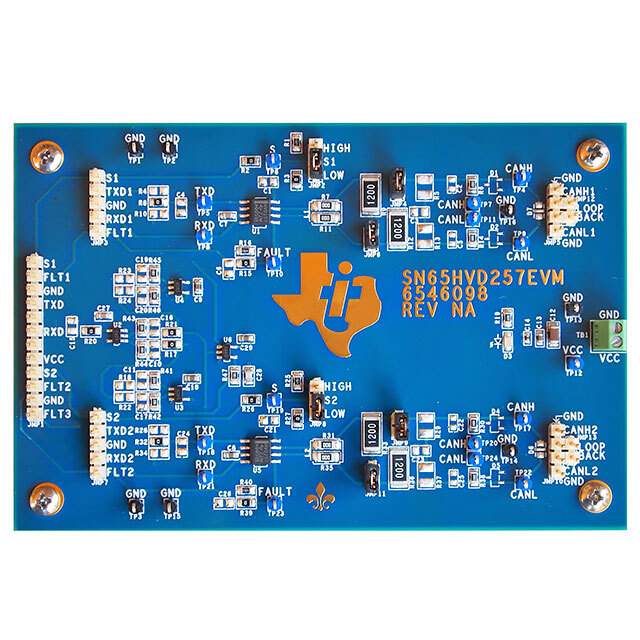

SN65HVD257EVM - Texas Instruments CAN Transceiver Evaluation Module

The SN65HVD257EVM from Texas Instruments is a robust evaluation module designed for testing the performance and capabilities of the SN65HVD257 CAN transceiver. This transceiver is a key component in applications requiring high-speed data transmission over Controller Area Network (CAN) communication bus systems. The SN65HVD257EVM provides engineers, designers, and hobbyists with a convenient and efficient platform for developing and prototyping CAN-based applications.

Key Features:

• High-Speed CAN Transceiver: The SN65HVD257 CAN transceiver supports data rates up to 1 Mbps and is compliant with the ISO 11898-2 standard.
• Bus Fault Protection: The device features robust fault protection up to ±36V, making it suitable for harsh industrial environments.
• Low Current Standby Mode: With a low-power standby mode, the transceiver ensures energy efficiency, a crucial aspect for battery-powered and energy-sensitive applications.
• Differential Receiver with Wide Common-Mode Range: The transceiver's receiver can handle common-mode voltages from -12V to +12V, providing reliable data reception under varying conditions.
• Thermal Shutdown Protection: The integrated thermal shutdown feature protects the device from over-temperature conditions, ensuring longevity and stable operation.
• LED Indicators: For easy monitoring, the evaluation module includes LED indicators that provide visual feedback on the transceiver's status and activity.

Applications:

The SN65HVD257EVM is suitable for a wide range of applications, including:

• Industrial automation and control systems
• Automotive networks
• Building automation
• Medical equipment
• Embedded systems

Package Contents:

The evaluation module package typically includes:

• SN65HVD257 Evaluation Module
• User's Guide and Documentation

With the SN65HVD257EVM, users can quickly set up a CAN interface for testing and validation purposes, simplifying the development process and accelerating time-to-market for CAN-based solutions. Texas Instruments provides comprehensive support and resources, including detailed datasheets, application notes, and user guides, to ensure a successful evaluation experience.
