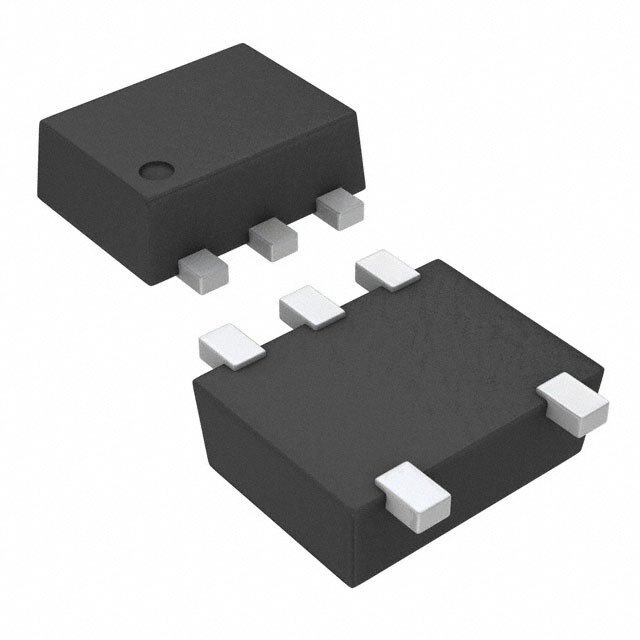

Same model may have multiple batches, images only for reference.
SN74AUP1G08DRLR Texas Instruments
Same model may have multiple batches, images only for reference.

SN74AUP1G08DRLR

Part No SN74AUP1G08DRLR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC GATE AND 1CH 2-INP SOT-5
Datasheet
SN74AUP1G08DRLR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type AND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 0.8 V to 3.6 V
Current - Quiescent (Max) 0.5μA
Current - Output High, Low 4mA, 4mA
Logic Level - Low 0.7 V to 0.9 V
Logic Level - High 1.6 V to 2 V
Max Propagation Delay @ V, Max CL 6.2ns @ 3.3V, 30pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-5
Dimension SOT-553
Win Source Part Number 144375-SN74AUP1G08DRLR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SN74AUP1G08DRLR CAD Model

Description

The SN74AUP1G08DRLR is a high-quality, advanced technology product from Texas Instruments, a renowned global semiconductor company that designs, manufactures, and sells analog and embedded processing chips.

  • Operating Voltage: 0.8V to 3.6V.
  • Maximum tpd: 3.8ns @ 1.8V.
  • Temperature Range: -40°C to 85°C.
  • ICC: Low ICC of 0.9 µA maximum.
  • Icc: Low dynamic power consumption, Icc of 0.25 µA/MHz @ 1.8V.
  • Package: Small SOT-5X3 package.
  • Compliance: RoHS compliant.
