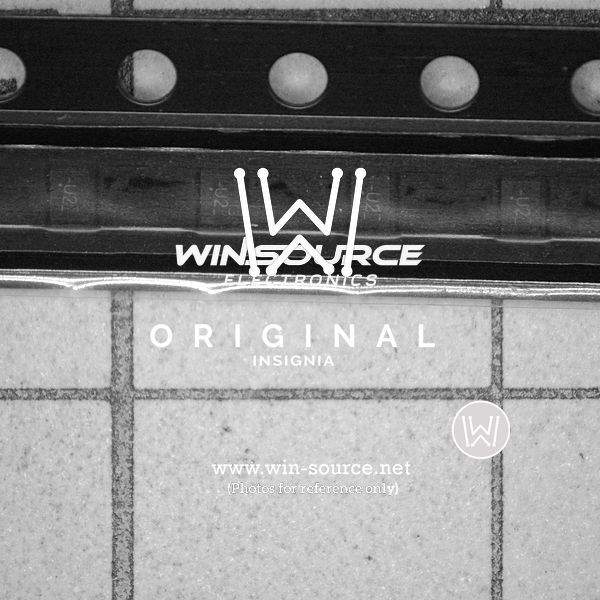

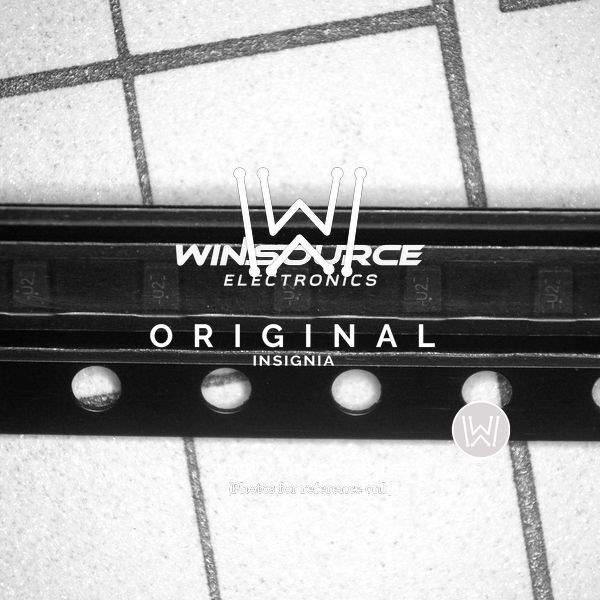

The SN74AUP1T34DSFR is a high-performance, single-bit, unidirectional voltage level translator from Texas Instruments. Designed for low-power operation, this device is part of the advanced ultra-low power (AUP) family, which offers a wide range of voltage level translation solutions for multi-voltage systems.

Key Features

• Low Power Consumption: With its ultra-low power design, the SN74AUP1T34DSFR is optimized for power-sensitive applications, ensuring minimal impact on battery life and overall system power usage.
• Voltage Level Translation: It supports bidirectional voltage level translation between different logic levels ranging from 0.9V to 3.6V, making it suitable for interfacing between low-voltage microprocessors or microcontrollers and higher voltage circuits.
• High-Speed Operation: Despite its low power consumption, the device does not compromise on speed, providing high-speed operation that is essential for modern digital communication and signal processing applications.
• ESD Protection: The inputs and outputs are equipped with robust electrostatic discharge (ESD) protection, ensuring the device's reliability and longevity in harsh electrical environments.
• Compact Package: The SN74AUP1T34DSFR comes in a space-saving 6-pin SOT (small outline transistor) package, making it ideal for use in compact and portable electronic devices.

Applications

The versatility of the SN74AUP1T34DSFR makes it an excellent choice for a wide range of applications, including:

• Mobile and portable devices where power efficiency is critical
• Multi-voltage level interface applications in consumer electronics
• Data communication systems requiring high-speed level shifting
• Microcontroller or microprocessor-based systems needing voltage translation

Technical Specifications

Overall, the SN74AUP1T34DSFR from Texas Instruments is a reliable and efficient solution for voltage level translation in a variety of electronic systems, providing both performance and durability in a compact form factor.
