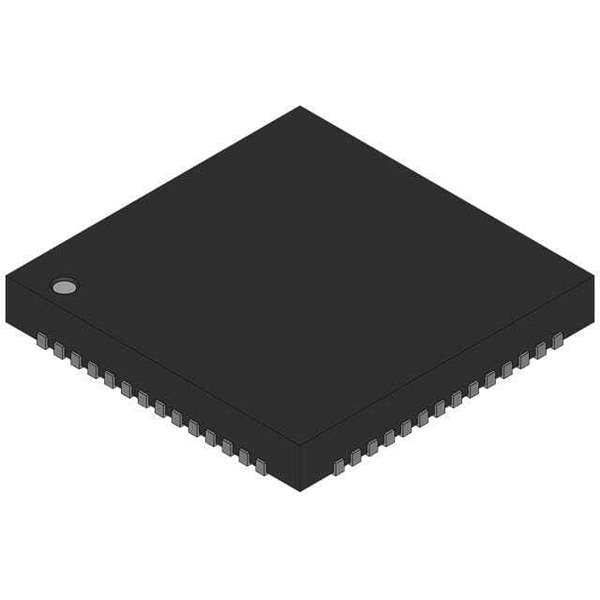

Texas Instruments TLC5957RTQR LED Driver

The Texas Instruments TLC5957RTQR is a highly versatile, precision LED driver designed for use in a broad range of applications requiring constant-current drive for LED arrays. This advanced driver IC is ideal for lighting solutions including full-color displays, backlighting, automotive lighting, and general illumination applications.

Equipped with a 48-channel output, the TLC5957RTQR can control multiple LEDs with high accuracy, providing uniform brightness and enhanced color accuracy across the display. Each channel has a 65,536 grayscale PWM control and a 128-step global brightness control, allowing for intricate and precise control over the lighting effects and intensity.

This LED driver operates with a supply voltage range of 3.0V to 5.5V, making it compatible with a variety of power sources and systems. It also features a high clock frequency of up to 30MHz for the grayscale control PWM signal, enabling smooth transitions and flicker-free operation even at low brightness levels.

The TLC5957RTQR incorporates several built-in features to ensure reliable and stable operation. These include LED open detection, thermal shutdown, and pre-charge FET for ghosting prevention. These protective features help to extend the lifespan of the LEDs and maintain consistent performance over time.

For ease of integration, the TLC5957RTQR comes in a compact QFN package and utilizes a serial interface for communication, which reduces the number of necessary I/O pins from the controlling microcontroller or processor. This simplifies the PCB layout and can help to reduce overall system costs.

Overall, the Texas Instruments TLC5957RTQR LED driver is a high-performance solution that offers designers the flexibility, control, and reliability needed to create sophisticated LED lighting systems. Its advanced features and protective mechanisms make it a top choice for professionals seeking to develop cutting-edge lighting technologies.
