Overview of Texas Instruments TLV62568DRLR

The TLV62568DRLR is a highly efficient, synchronous step-down DC-DC converter designed by Texas Instruments (TI) to meet the power management needs of a wide range of applications. This compact and versatile component is well-suited for portable electronics, IoT devices, and other systems requiring a reliable power solution.

Key Features

• High Efficiency: With a peak conversion efficiency of up to 95%, the TLV62568DRLR ensures minimal power loss and helps extend battery life in portable applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to a maximum defined by the input voltage, accommodating a variety of power requirements.
• Low Quiescent Current: It has a low quiescent current of 20µA, making it ideal for battery-powered applications where energy conservation is crucial.
• Wide Input Voltage Range: The device operates from an input voltage range of 2.5V to 5.5V, allowing it to support a variety of power sources including single-cell Li-ion batteries.
• High Switching Frequency: A 1.5MHz switching frequency enables the use of small inductors and capacitors, resulting in a compact solution with a small footprint.
• Thermal and Over-Current Protection: The TLV62568DRLR includes thermal shutdown and over-current protection to safeguard the device and the system under extreme conditions.

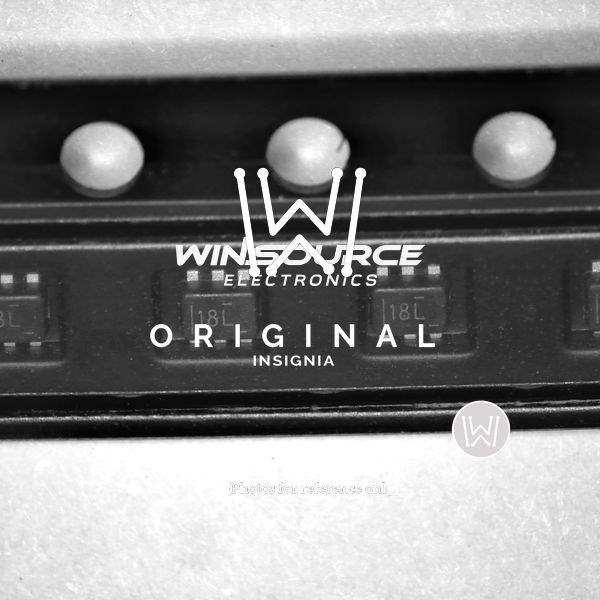

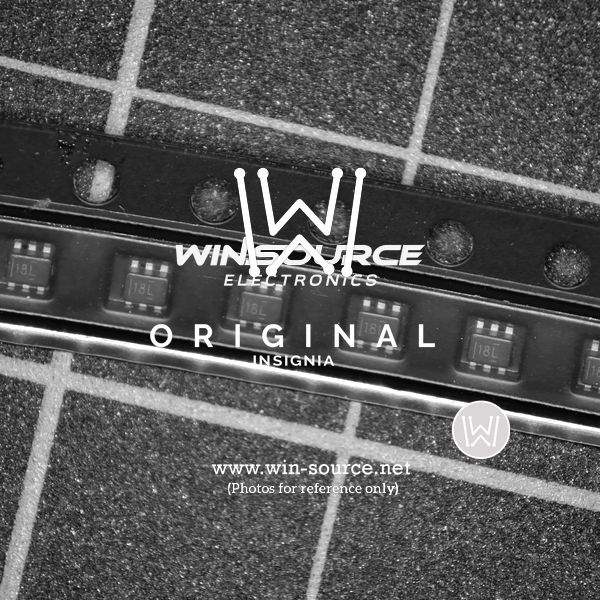

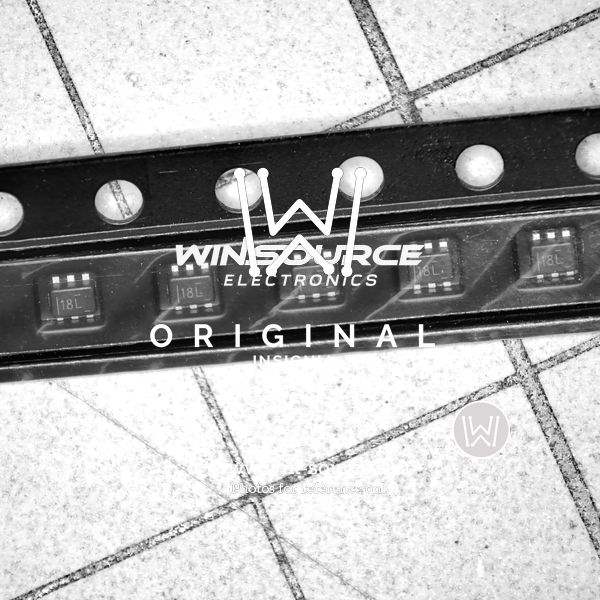

• Package: Supplied in a small 6-pin SOT (DRL) package, it is optimized for space-constrained applications.

Applications

The versatility of the TLV62568DRLR makes it an excellent choice for a range of applications, including:

• Smartphones and Tablets
• Wireless Power Tools
• Portable Media Players
• IoT Devices
• Wearable Technology

As a product of Texas Instruments, a leader in semiconductor solutions, the TLV62568DRLR is backed by the company's commitment to high-quality and reliable components. Engineers and designers can rely on this DC-DC converter to deliver efficient power conversion for their electronic projects and commercial products.
