Overview of Texas Instruments TLV70236DSER

The TLV70236DSER from Texas Instruments is a highly efficient low-dropout regulator (LDO) designed for applications that demand minimal power consumption and high output accuracy. This compact and reliable component is an ideal choice for powering sensitive analog and digital ICs in a variety of portable and battery-powered devices. Its small size and high efficiency make it perfect for space-constrained applications such as smartphones, tablets, and wearable technology.

Key Features

• Output Voltage: The TLV70236DSER provides a fixed output voltage of 3.6V, which is suitable for a range of low-voltage electronics.
• High Accuracy: This LDO offers excellent regulation with a low output voltage error, ensuring reliable performance for critical applications.
• Low Dropout: It features a low dropout voltage, which enables the regulator to continue delivering a stable output even when the input voltage is close to the output voltage, maximizing battery life.
• Current Rating: The device can supply up to 300 mA of output current, catering to moderate power requirements.
• Power-Saving Mode: It includes a power-saving mode that reduces quiescent current, further extending battery life in portable applications.
• Stable with Low ESR Capacitors: The LDO is stable with ceramic capacitors that have a low equivalent series resistance (ESR), which helps in reducing the overall solution size and cost.
• Thermal Protection: The TLV70236DSER is equipped with thermal shutdown and overcurrent protection features to safeguard the device and the system under extreme conditions.

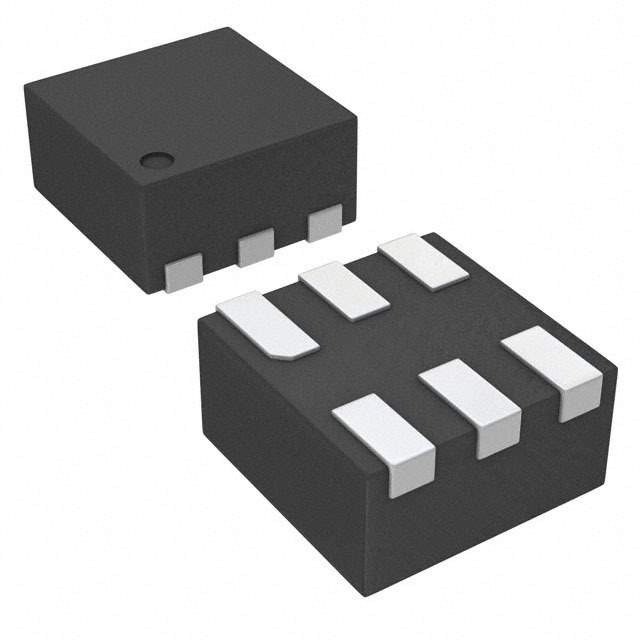

• Package: It is available in a small 6-pin WSON package, making it suitable for compact PCB layouts.

Applications

The versatility of the TLV70236DSER allows it to be used in a broad range of applications. It is particularly well-suited for powering microcontrollers, low-power RF devices, and other sensitive components that require a stable power supply. Its low quiescent current and power-saving features make it an excellent choice for battery-powered equipment, including medical devices, fitness trackers, and smart sensors.

With its combination of high accuracy, low power consumption, and compact footprint, the TLV70236DSER from Texas Instruments is a robust power management solution that meets the needs of today's advanced electronic devices.
