The TLV75201PDSQR is a state-of-the-art low-dropout (LDO) voltage regulator offered by Texas Instruments, designed for applications requiring a high degree of stability and reliability. This LDO regulator is capable of delivering up to 2A of continuous output current with an excellent transient response, making it ideal for powering sensitive analog and digital circuits.

Key Features

• Output Voltage Range: The TLV75201PDSQR provides a wide output voltage range, which is adjustable to meet the requirements of various applications.
• High Accuracy: It offers a high accuracy output voltage, ensuring that the powered device operates within its optimal voltage range.
• Low Dropout: The low dropout feature allows the regulator to continue operating efficiently even when the input-to-output voltage differential is minimal, reducing power loss and improving system efficiency.
• Thermal Protection: The device includes thermal shutdown protection, which safeguards the regulator and the system from damage due to excessive temperature rise.
• Overcurrent Protection: Built-in overcurrent protection prevents damage to the regulator and the load in the event of a short circuit or an overload condition.
• Stable with Low ESR Capacitors: The TLV75201PDSQR is stable with ceramic capacitors, which have a low equivalent series resistance (ESR), providing flexibility in the choice of output capacitors.

Applications

The TLV75201PDSQR is suitable for a variety of applications, including but not limited to:

• Portable and battery-powered devices
• Wireless communication systems
• Microprocessor/microcontroller power supplies
• Power management for DSPs and FPGAs

Package and Availability

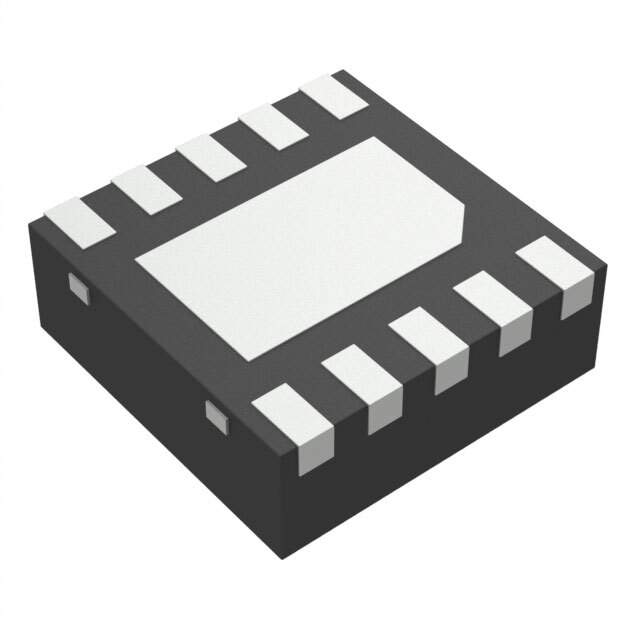

The device is available in a small, leaded surface-mount package, which is ideal for space-constrained applications. It is also RoHS compliant and is designed to meet the requirements of green electronics. The TLV75201PDSQR is part of Texas Instruments' extensive LDO portfolio and is available for order through their official channels and authorized distributors.

Conclusion

With its robust feature set, the TLV75201PDSQR from Texas Instruments represents a versatile power management solution that can cater to a wide array of applications requiring stable and efficient voltage regulation. Its combination of high output current capability, low dropout performance, and protection features makes it a reliable choice for designers looking to optimize their power supply designs.
