Texas Instruments TMS320F2812PGFQ Digital Signal Processor

The TMS320F2812PGFQ is a high-performance 32-bit digital signal processor (DSP) from Texas Instruments, designed specifically for the needs of embedded control applications. This processor is part of the TMS320C28x DSP generation, which is well-known for its processing power, versatility, and efficiency in handling complex algorithms and computations.

Key Features:

• High-Performance Processing: With a 150 MHz clock rate, the TMS320F2812PGFQ provides 150 million instructions per second (MIPS), making it suitable for a wide range of demanding applications.
• Integrated Memory: The device includes 128K x 16 Flash, 18K x 16 SRAM, providing ample storage for both program code and data without the need for external memory components.
• Robust Peripherals: The DSP features an array of peripherals including a 12-bit analog-to-digital converter (ADC), CAN module, PWM outputs, and capture inputs, which facilitate its use in motor control, industrial control, and sensor measurement applications.
• Advanced Control: The processor supports advanced control algorithms with its high-resolution PWM and capture units, making it ideal for precision control tasks.
• On-Chip Debugging: An on-chip debugging module enables real-time debugging and analysis, which is crucial for development and optimization of applications.
• Low Power Consumption: Designed with power efficiency in mind, the TMS320F2812PGFQ features a variety of power-saving modes to reduce overall power consumption.

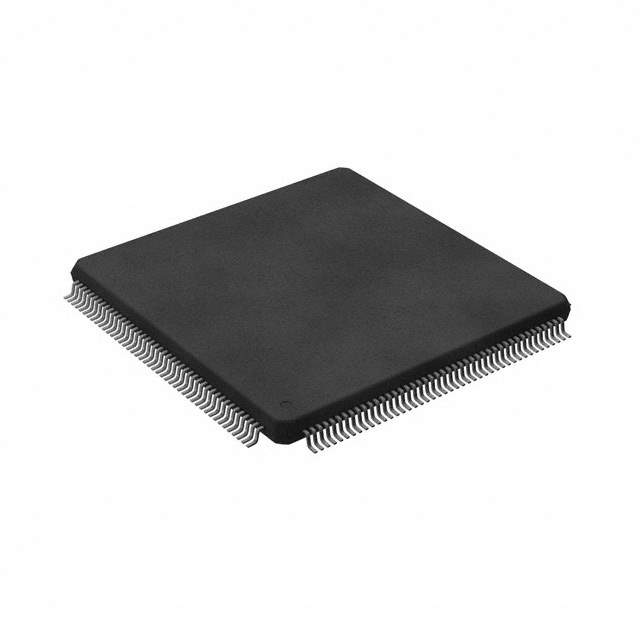

• Packaging: The DSP comes in a 176-pin LQFP (Low Profile Quad Flat Package), which is suitable for space-constrained applications.

Applications:

The TMS320F2812PGFQ is widely used in industrial control systems, including motor control, power conversion, inverters, and digital power supplies. Its robust design and high-speed processing capabilities make it a go-to choice for automotive applications, robotics, and various forms of automated machinery.

Conclusion:

Overall, the TMS320F2812PGFQ from Texas Instruments stands out as a powerful and flexible DSP solution for developers seeking to create sophisticated control systems with stringent performance requirements. Its comprehensive feature set and integrated peripherals offer a compact and cost-effective solution for a multitude of embedded control applications.
