The TMUX1072RUTR is a precision, dual-channel, 2:1 multiplexer from Texas Instruments, designed for exceptional performance in a variety of applications. This advanced switch is part of the TMUX1072 series, which is renowned for its high reliability and versatility, making it an ideal choice for engineers and designers looking to optimize their signal routing with minimal signal distortion.

Key Features

• Low On-Resistance: The device offers a low on-resistance of typically 5 Ω, allowing signals to pass through with minimal voltage drop and power loss.
• Wide Operating Range: It operates over a wide supply range from 1.08 V to 5.5 V, accommodating a variety of signal levels and making it suitable for both single and dual supply operations.
• Bidirectional Signal Flow: The TMUX1072RUTR supports bidirectional signal flow, enabling it to be used in both multiplexing and demultiplexing applications.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is built into the device, safeguarding it against the damaging effects of static electricity.
• Break-Before-Make Switching: The device features break-before-make switching, which ensures that no two channels are connected simultaneously, preventing signal interference and short circuits.

Applications

The TMUX1072RUTR is suitable for a diverse range of applications, including but not limited to:

• Data acquisition systems
• Signal routing in audio and video equipment
• Communication systems
• Medical equipment
• Test and measurement setups

Package and Quality

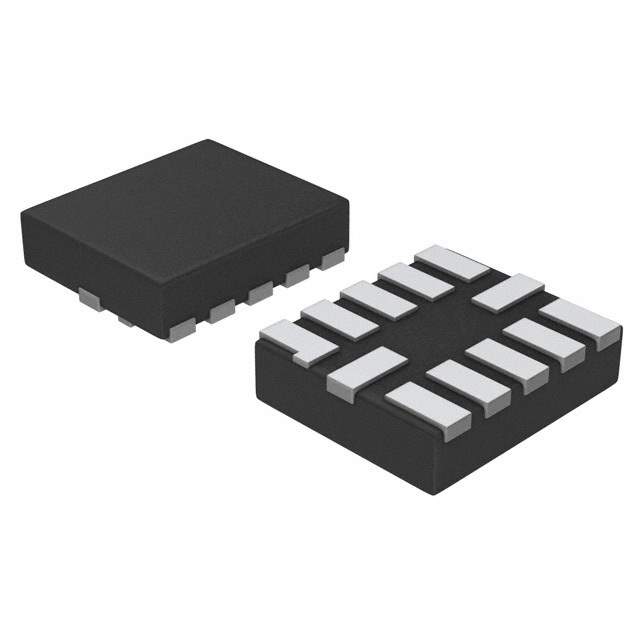

Encased in a compact, surface-mount, 10-pin UQFN package, the TMUX1072RUTR is designed for space-constrained applications. Its small footprint does not compromise on performance or quality. The device is also RoHS compliant and is manufactured under Texas Instruments' stringent quality control standards, ensuring high reliability and performance consistency for critical applications.
