The TPL5010DDCT is a highly efficient nano-power timer IC designed by Texas Instruments, which is ideal for power-saving applications. This device is part of TI's extensive line of power management integrated circuits, specifically engineered to extend the battery life of portable and wearable electronics by optimizing their power consumption.

Key Features

• Low Power Consumption: The TPL5010DDCT boasts a very low current draw of only 35 nA in its typical operating state, which is crucial for battery-operated devices where power efficiency is a priority.
• Programmable Time Intervals: Users can program the timer for time intervals ranging from 100 ms to 7200 s, allowing for a flexible adjustment according to the application's requirements.
• Manual Reset Function: Equipped with a manual reset function, this timer IC allows for additional control over the connected microcontroller or other peripherals, ensuring reliable operation and quick recovery from error states.
• Watchdog Functionality: The TPL5010DDCT can also operate as a watchdog timer, providing an extra layer of safety by resetting the system in case of malfunction or if the system becomes unresponsive.

Applications

The TPL5010DDCT is versatile and can be used in a wide range of applications. It is particularly suited for:

• Energy and resource metering
• Wearable health devices
• Home automation systems
• Industrial monitoring sensors
• Portable electronics

Package and Availability

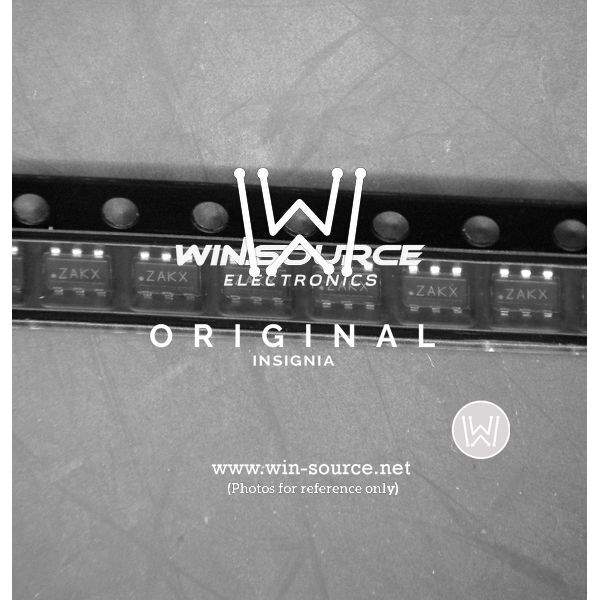

The TPL5010DDCT comes in a small, 6-pin SOT-23 package, which is conducive to space-constrained designs. Its compact form factor, combined with its robust feature set, makes it an excellent choice for designers looking to enhance their systems' power management capabilities.

Conclusion

In summary, the TPL5010DDCT from Texas Instruments is a reliable and flexible solution for extending the battery life of a wide array of electronic devices. Its low power consumption, programmable intervals, and additional features like manual reset and watchdog functionality make it a smart choice for power-conscious designs.
