Product Overview: TPS2066CDGNR-2 from Texas Instruments

The TPS2066CDGNR-2 is a state-of-the-art power distribution switch from the reputable Texas Instruments, designed to enhance the performance and reliability of USB and other power distribution systems. This device is part of TI's extensive line of power management integrated circuits, specifically tailored to manage and protect power in electronic systems.

Key Features

• Multiple Output Current Options: The TPS2066CDGNR-2 offers an output current of up to 1 A across its channels, ensuring robust power delivery for connected devices.
• Overcurrent Protection: With built-in overcurrent protection, this switch safeguards the system from excessive current that could potentially cause damage.
• Thermal Shutdown: The thermal shutdown feature prevents overheating, enhancing the longevity and reliability of both the switch and the system it is part of.
• Under-Voltage Lockout (UVLO): This safety feature ensures that the switch remains off if the input voltage drops below a certain threshold, protecting the device and connected peripherals.
• Reverse Voltage Protection: This device is engineered to protect against reverse voltage, which can occur during incorrect power supply connections.

Applications

The TPS2066CDGNR-2 is ideally suited for a wide range of applications, particularly where power distribution and protection are critical. Some common applications include:

• USB hubs and peripherals
• Hot-swap power supplies
• Portable consumer electronics
• Power management for computers and servers

Technical Specifications

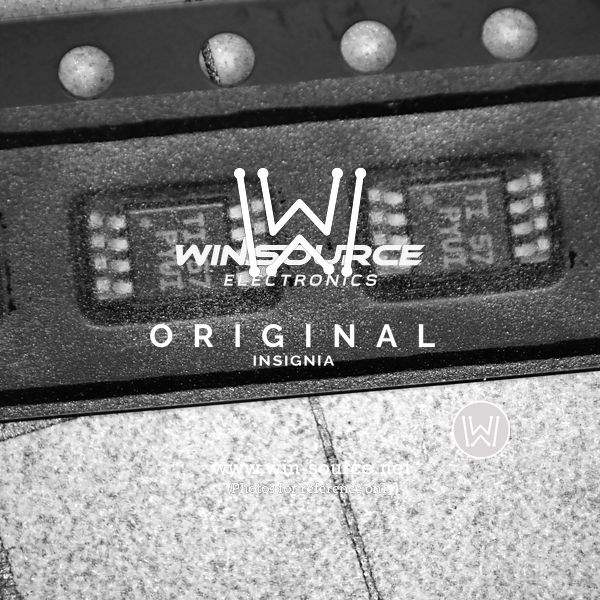

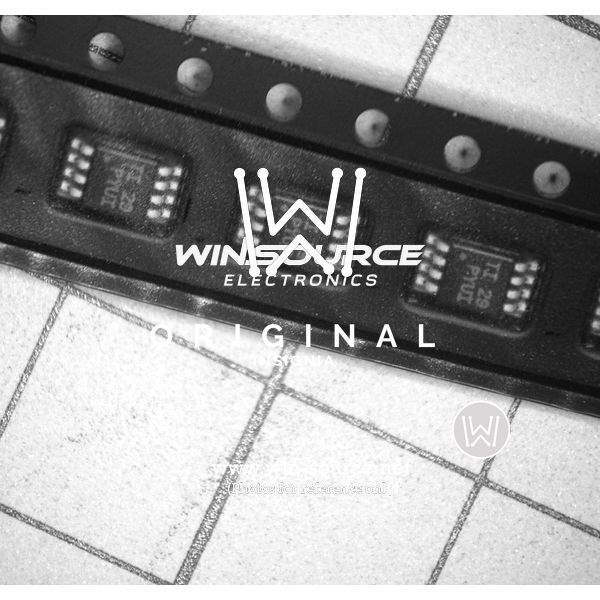

• Package: The device comes in an 8-pin MSOP (DGN) package, making it compact and suitable for space-constrained applications.
• Operating Voltage Range: It operates over a wide voltage range, accommodating various system requirements.
• Efficiency: Designed for high efficiency, the TPS2066CDGNR-2 reduces power loss and improves overall system performance.

With its robust feature set and Texas Instruments' commitment to quality, the TPS2066CDGNR-2 is an excellent choice for designers looking to implement a reliable power distribution solution in their electronic systems.
