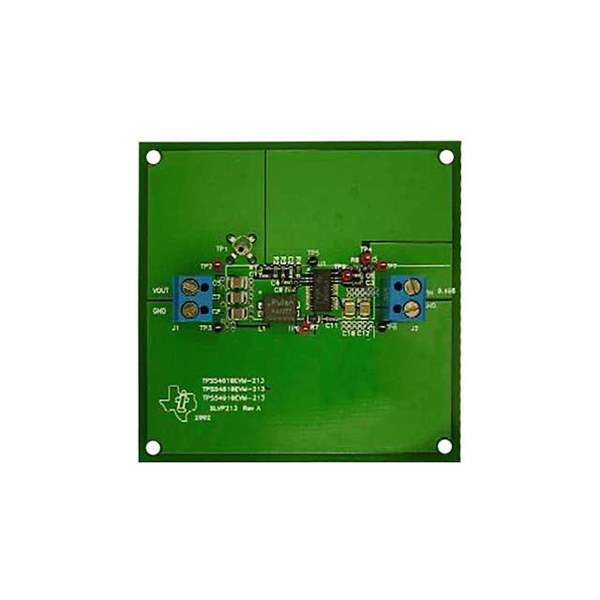

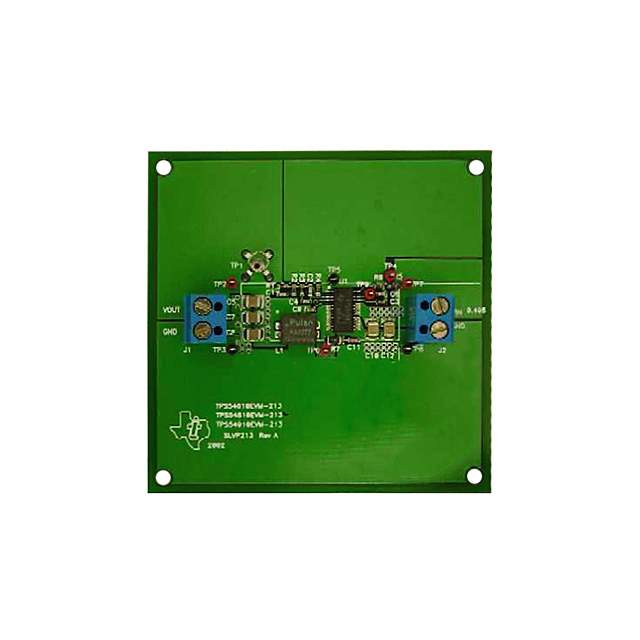

The TPS54610EVM-213 from Texas Instruments is a comprehensive evaluation module designed to help both novice and expert engineers in assessing the capabilities and performance of the TPS54610 buck converter. This evaluation module (EVM) serves as a robust platform to facilitate the testing of the TPS54610, a highly efficient, synchronous buck regulator that is capable of delivering up to 6A of continuous output current.

The EVM is pre-set to a 1.8V output voltage, but it is designed with flexibility in mind, allowing users to easily adjust the output voltage anywhere between 0.9V to 5.5V to suit a wide variety of applications. This flexibility ensures that the TPS54610EVM-213 can be used for a broad range of power supply designs, including but not limited to, DSP and FPGA power supplies, consumer electronics, and telecommunications equipment.

Featuring an input voltage range from 3V to 6V, the TPS54610EVM-213 is ideal for systems that operate within this range and require a stable and efficient power supply. The high efficiency of the TPS54610, along with its integrated 5.5mΩ high-side MOSFET and 2.2mΩ low-side MOSFET, ensures minimal power loss during operation, making it an excellent choice for power-sensitive applications.

The EVM includes a variety of test points and jumpers for easy evaluation of the TPS54610's features. Engineers can monitor performance characteristics such as efficiency, power dissipation, and thermal performance. Additionally, the evaluation module is equipped with several protection features, including overcurrent protection, thermal shutdown, and under-voltage lockout, ensuring safe operation during the evaluation process.

Overall, the TPS54610EVM-213 is a valuable tool for engineers who are developing power supplies that demand high efficiency, adjustable output voltage, and a compact power solution. Its user-friendly design and comprehensive test points make it an ideal platform for quickly and effectively evaluating the TPS54610 buck converter and expediting the design process.
