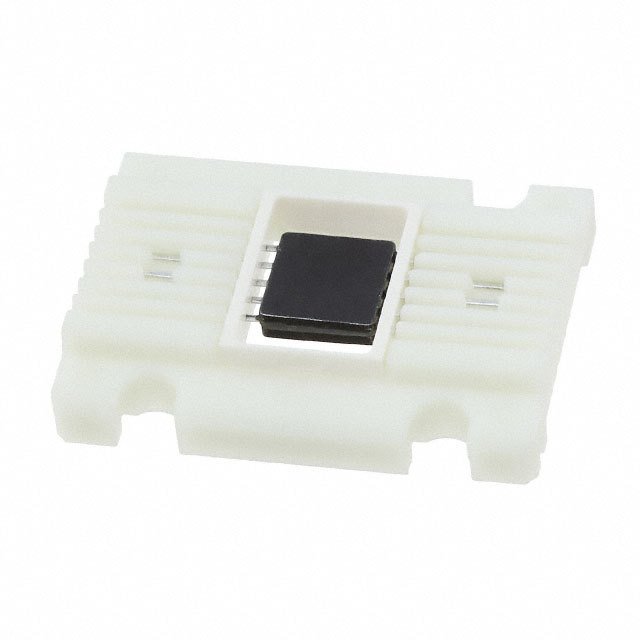

The TPS7A4501MUB from Texas Instruments is a high-performance, low-dropout linear regulator (LDO) that offers outstanding ac performance with very low ground current. Ideal for high-accuracy and high-precision applications, this regulator provides a stable and clean power supply, making it a perfect choice for sensitive analog circuits, RF applications, and post-regulation for switching power supplies.

Key Features

• Output Voltage Range: The device provides an adjustable output voltage ranging from 1.21V to 20V, which can be set using an external resistor divider.
• High Output Current: Capable of delivering up to 1.5A of continuous output current, it meets the requirements of a broad range of power needs.
• Low Dropout Voltage: With a dropout voltage of typically 300mV at full load, it ensures efficient operation even when the input-to-output voltage differential is small.
• Excellent Load and Line Transient Response: The LDO maintains output voltage stability in the face of rapid load changes, preserving the integrity of the power supply.
• Low Noise: With an ultra-low output noise of 28µVRMS, it provides a very clean output, which is crucial for RF and precision analog applications.
• Thermal Protection: Integrated over-temperature shutdown protects the device from damage due to overheating.
• Overcurrent Protection: Built-in current limit helps protect the regulator and the load from fault conditions.

Applications

• High-precision analog circuits
• RF and telecommunications equipment
• Post-regulation for switching power supplies
• Microcontroller and microprocessor power supplies
• Medical and healthcare equipment

The TPS7A4501MUB's robust feature set ensures that it can be used in a variety of demanding applications, providing a reliable and stable power source wherever it is needed. Its small form factor and thermal performance make it an excellent choice for space-constrained and thermally sensitive applications. With Texas Instruments' commitment to quality, this LDO is designed to meet the stringent requirements of industrial and commercial systems.
