Product Overview: TPS7A9101DSKT

The TPS7A9101DSKT from Texas Instruments is a high-performance, low-dropout linear regulator (LDO) designed to deliver a continuous, stable output current of up to 1A. This advanced LDO is ideal for sensitive analog circuits requiring a low noise power supply and a wide input voltage range. It is commonly used in applications such as RF, high-speed analog, mixed-signal, medical, and test instrumentation.

Key Features

• Output Voltage Range: The device offers an adjustable output voltage range from 0.8V to 3.95V, allowing for flexibility in various applications.
• High Accuracy: With an output voltage accuracy of ±1%, the TPS7A9101DSKT ensures precise voltage delivery for critical applications.
• Low Dropout Voltage: The low dropout voltage (LDO) feature minimizes the difference between the input and output voltages, enhancing efficiency and allowing operation with minimal headroom.
• Low Noise: This regulator produces a low output noise of 4.4 µVRMS, making it suitable for noise-sensitive circuits.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection safeguards the device and the circuit from damage due to overheating or excessive current draw.
• Stability: The device remains stable with ceramic output capacitors, ensuring reliable performance and simplifying design considerations.

Applications

• RF and high-speed analog circuits
• Mixed-signal ICs (ADCs, DACs, DSPs)
• Medical equipment
• Test and measurement instruments
• Portable and battery-powered devices

Package and Availability

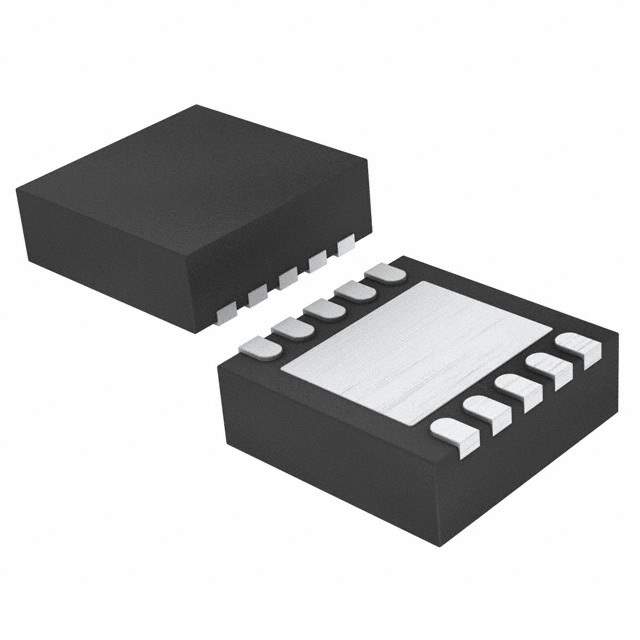

The TPS7A9101DSKT is available in a compact WSON-8 package, which is suitable for space-constrained applications. Texas Instruments' commitment to quality ensures that this product meets the highest standards and is available for order through their extensive distribution network.

With its combination of performance, precision, and protection features, the TPS7A9101DSKT is an excellent choice for designers seeking a robust power management solution.
