The TUSB215QRGYRQ1 from Texas Instruments is a specialized integrated circuit designed to enhance USB 2.0 signal quality by conditioning the signals in environments with challenging conditions. This high-speed signal conditioner is particularly suitable for use in automotive applications, as indicated by the 'Q1' designation, which reflects Texas Instruments' quality standard for automotive-grade products.

Key Features

• Signal Conditioning: The device improves signal quality by reducing jitter and compensating for loss, ensuring reliable communication over USB 2.0 connections.
• High-Speed Data Rates: Supports up to 480 Mbps for high-speed USB 2.0 data transfer.
• Adjustable Equalization: Features built-in adjustable equalization to optimize performance over various physical media and lengths of trace or cable.
• Temperature Range: Operates within an extended temperature range, making it suitable for use in harsh automotive environments.
• ESD Protection: Integrated electrostatic discharge (ESD) protection circuitry guards against damage from static electricity discharges.
• Compliance: Meets the requirements for USB-IF compliance, ensuring interoperability with other USB devices.

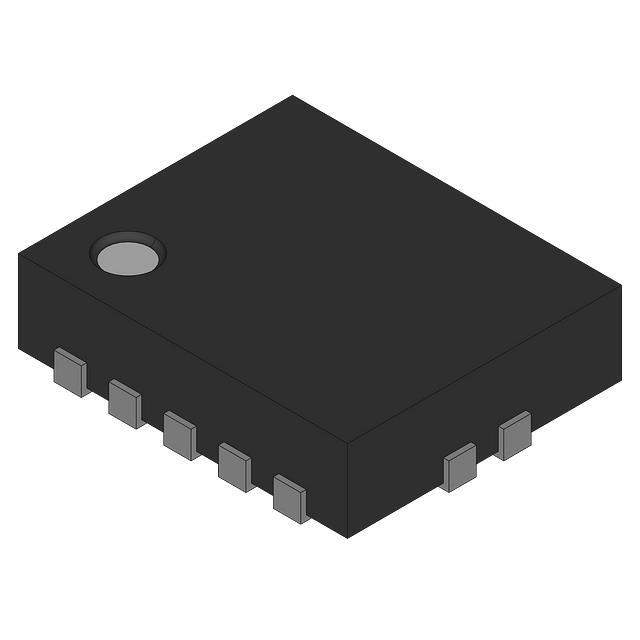

• Package: Available in a compact QFN (R-GY) package, which is optimized for minimal footprint and low power consumption.

Applications

The TUSB215QRGYRQ1 is ideal for a range of applications where USB signal integrity might be compromised due to long cable lengths or noisy environments. Common applications include:

• Automotive infotainment and connectivity systems
• Industrial control interfaces
• Consumer electronics requiring robust USB communications

Conclusion

Overall, the TUSB215QRGYRQ1 is a highly reliable and robust solution for enhancing USB 2.0 signal quality in automotive and other demanding applications. Its ability to adjust equalization and provide ESD protection, coupled with compliance to automotive standards, makes it an essential component for developers looking to ensure stable and high-speed USB communications.
