The TXS0104ERGYRG4 is a robust, versatile voltage-level translator from Texas Instruments, designed for bidirectional voltage-level translation in multi-voltage digital system applications. This device is part of the TXS series, which is known for its high-speed, auto-direction sensing features that make it ideal for systems where data direction changes frequently or without intervention.

Key Features

• Flexible Voltage Translation: The TXS0104ERGYRG4 is capable of translating voltages between 1.65V and 3.6V on the VCCA side, and 2.3V to 5.5V on the VCCB side, allowing for seamless communication between devices operating at different voltage levels.
• Auto-Direction Sensing: This translator does not require a direction control signal, as it automatically senses and adjusts the direction of data flow.
• High-Speed Operation: With support for up to 24 Mbps (megabits per second), it is suitable for high-speed signal transmission without compromising data integrity.
• Low Standby Current: It is designed for low power consumption, with a typical standby current of only 1 uA (microampere), making it an energy-efficient choice for battery-powered applications.

Applications

The TXS0104ERGYRG4 is ideal for applications that require voltage-level translation, such as interfacing between microprocessors, microcontrollers, and peripherals with different voltage domains. It is commonly used in:

• Mobile Phones
• GPS Navigation Systems
• Media Players
• Portable Gaming Devices

Package and Quality

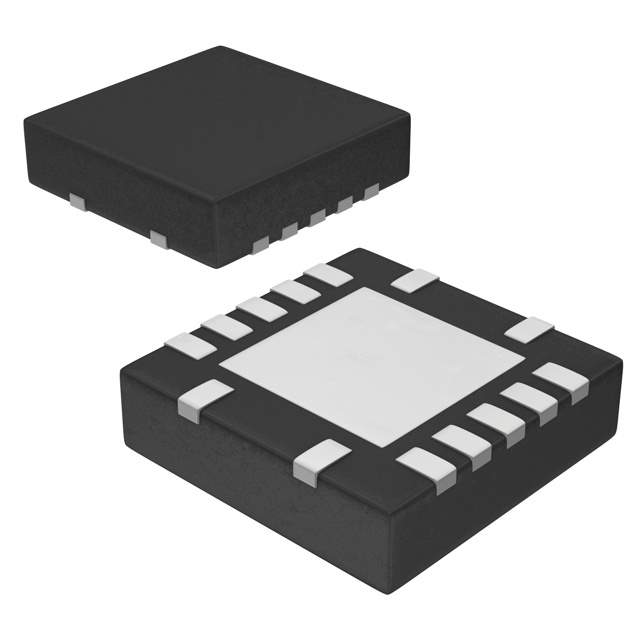

This device comes in a compact QFN-14 package, which is lead-free, RoHS compliant, and designed for space-constrained applications. The TXS0104ERGYRG4 is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

Conclusion

With its auto-direction sensing, broad voltage range compatibility, and low-power operation, the TXS0104ERGYRG4 from Texas Instruments is an excellent choice for designers looking to bridge the gap between different voltage domains in their digital systems. Its compact form factor and robust temperature range make it a versatile component in a multitude of electronic products.
