The SSM3K15AFS is a P-channel MOSFET from Toshiba Semiconductor and Storage. It's designed for high-speed switching applications. This MOSFET features a low drain-source on-resistance, which minimizes power loss and improves efficiency in power management circuits.

Applications:

• High-Side Load Switch: Used to control power to a load, switching the high-side voltage.
• DC-DC Converters: Efficient switching element in voltage regulation circuits.
• Power Management in Portable Devices: Suitable for battery-powered devices requiring efficient power control.
• Motor Control: Used in low-power motor control applications.
• LED Lighting: Used to control and drive LED lighting circuits.

Features:

• P-Channel MOSFET: Operates by applying a negative voltage to the gate.
• Low Drain-Source On-Resistance (RDS(on)): Minimizes power dissipation during conduction.
• Low Threshold Voltage: Ensures that the MOSFET turns on quickly and efficiently.
• Small Surface Mount Package: Designed for high-density mounting on printed circuit boards.
• Halogen-Free: Environmentally friendly, compliant with RoHS standards.

Benefits:

• Improved Efficiency: Low RDS(on) reduces power loss, leading to higher efficiency in power circuits.
• Compact Design: Small package size allows for use in space-constrained applications.
• Fast Switching Speed: Reduces switching losses and improves performance in high-frequency applications.
• Reduced Heat Dissipation: Minimizes heat generation, improving system reliability.
• Simplified Circuit Design: Easy to implement and control with standard gate drive signals.

Specifications:

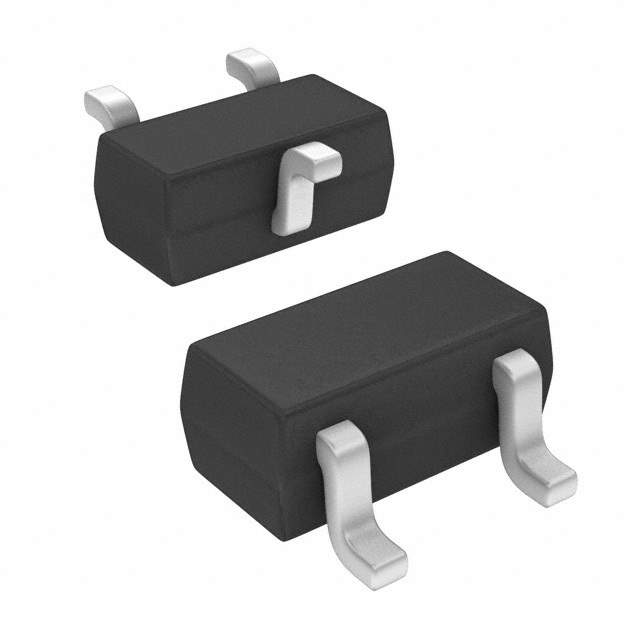

The SSM3K15AFS typically features a drain-source voltage (VDS) of -30V, a gate-source voltage (VGS) of ±20V, and a continuous drain current (ID) of -1.5A. The drain-source on-resistance (RDS(on)) is typically around 0.25 Ohms at a gate-source voltage of -10V. The threshold voltage (Vth) is typically around -1.0V. It is available in a SOT-23F package, suitable for surface mount technology.
