The TK80A08K3(Q) is an N-channel power MOSFET from Toshiba Semiconductor and Storage, designed for high-efficiency switching applications. This MOSFET features a low drain-source on-resistance (RDS(on)), which minimizes conduction losses and improves overall system efficiency. Its robust design ensures reliable performance in demanding environments.

Applications

• DC-DC converters: Used in various DC-DC conversion stages to regulate voltage levels efficiently.
• Motor control circuits: Employed in motor drives for precise speed and torque control.
• Power supplies: Integrated into power supply units (PSUs) for efficient power delivery.
• Load switches: Used as electronic switches for controlling power to different loads.
• Lighting systems: Found in LED lighting systems for dimming and power management.

Features

• Low drain-source on-resistance (RDS(on)): Reduces conduction losses and improves efficiency.
• High drain current (ID): Capable of handling substantial current levels.
• High avalanche energy (EAS): Provides robustness against voltage spikes and transient events.
• Logic Level Gate Drive: Allows for direct drive from microcontrollers and other logic devices, simplifying the driving circuitry.
• Fast switching speed: Enables efficient operation in high-frequency switching applications.
• RoHS compliant: Meets environmental regulations, making it suitable for global markets.

Benefits

• Improved system efficiency: Low RDS(on) minimizes power dissipation, leading to higher efficiency.
• Reduced heat generation: Lower conduction losses result in less heat, simplifying thermal management.
• Enhanced reliability: High avalanche energy rating provides protection against voltage transients.
• Simplified design: Logic level gate drive compatibility simplifies driving circuitry.
• Compact solution: Available in surface-mount packages for space-saving designs.

Additional Details

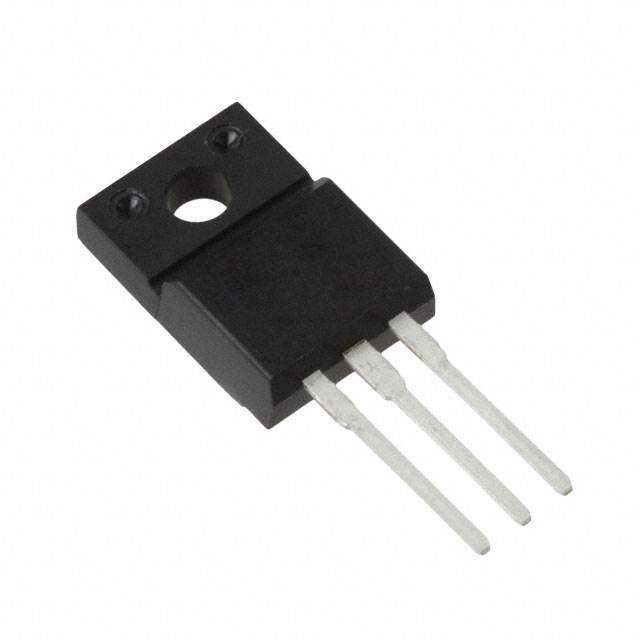

The TK80A08K3(Q) typically features a drain-source voltage (VDSS) of 80V and a continuous drain current (ID) of up to 80A (depending on the specific conditions and package). The gate-source voltage (VGSS) is typically rated at ±20V. The device is commonly available in a TO-220 or similar through-hole or surface mount package. The operating junction temperature ranges from -55°C to 175°C. This MOSFET is designed for optimal performance in PWM (Pulse Width Modulation) circuits and other switching applications where efficiency and reliability are critical.
