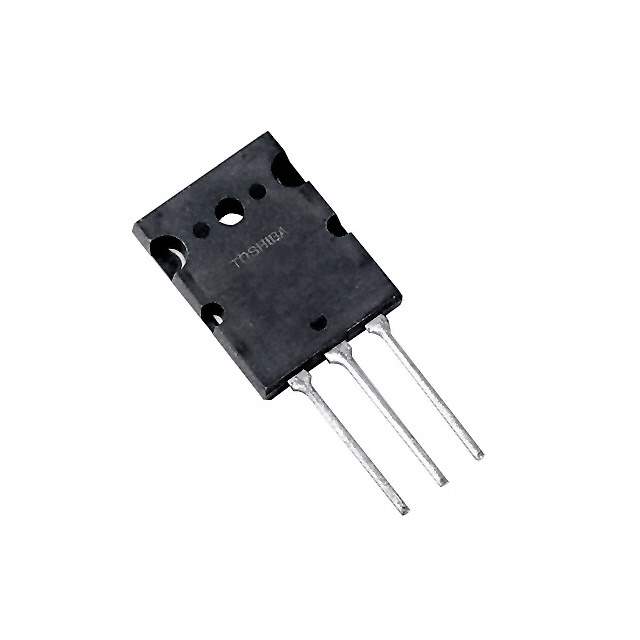

The TTA1943 is a high-power NPN epitaxial planar bipolar transistor manufactured by Toshiba Semiconductor and Storage. It is designed for high-fidelity audio amplifier output stages and other high-power linear applications requiring excellent linearity and high breakdown voltage.

Applications

• High-Fidelity Audio Amplifiers: Used as an output transistor in high-fidelity audio amplifiers, providing excellent linearity and low distortion.
• Power Amplifiers: Employed in various power amplifier applications, including industrial and automotive audio systems.
• Linear Amplifiers: Used in linear amplifiers for signal amplification and power amplification in communication and control systems.
• High-Voltage Switching Applications: Suitable for high-voltage switching applications requiring high breakdown voltage and high current capability.

Features

• High Breakdown Voltage: Features a high collector-emitter breakdown voltage (VCEO), allowing it to operate in high-voltage circuits.
• High Collector Current: Capable of handling high collector current (IC), making it suitable for high-power applications.
• Low Distortion: Designed for low distortion, providing excellent audio quality in audio amplifier applications.
• High Linearity: Offers high linearity, ensuring accurate signal amplification and reproduction.
• Excellent Safe Operating Area: Features an excellent safe operating area, ensuring reliable operation under various load conditions.

Benefits

• Superior Audio Quality: Low distortion and high linearity ensure superior audio quality in audio amplifier applications.
• High Power Capability: High collector current and high breakdown voltage enable high-power amplification.
• Reliable Operation: Excellent safe operating area ensures reliable operation under various load conditions.
• Versatility: Suitable for a wide range of applications, including audio amplifiers, power amplifiers, and linear amplifiers.
• Robust Design: Robust design ensures reliable performance in demanding applications.

Additional Details

The TTA1943 is typically used in complementary pairs with the TTC5200 (PNP transistor) in audio amplifier output stages. It operates over a specified temperature range and requires proper heat sinking to dissipate heat when operating at high power levels. The device is available in a TO-3PL package and complies with RoHS standards, ensuring environmental compliance. Its high performance and robust design make it a reliable choice for high-power audio and linear amplification needs.
