F-LAC TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

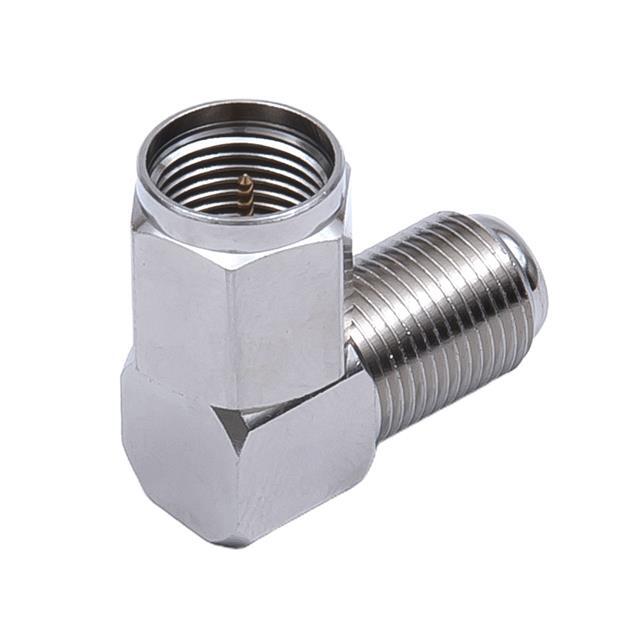

F-LAC

Part No F-LAC
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector, F Right Angle adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 2700MHz, and has a rated voltage of AC 150V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at 0.3MHz~2650MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating.
Datasheet
F-LAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Jack
Conversion Type Same Series
Adapter Series F to F
Center Gender Female to Male
Convert From (Adapter End) F Jack, Female Socket
Convert To (Adapter End) F Plug, Male Pin
Impedance 75 Ohms
Style Right Angle
Mounting Type Free Hanging (In-Line), Right Angle
Fastening Type Threaded, Threaded
Frequency - Max 2.7GHz
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian F-LAC CAD Model
