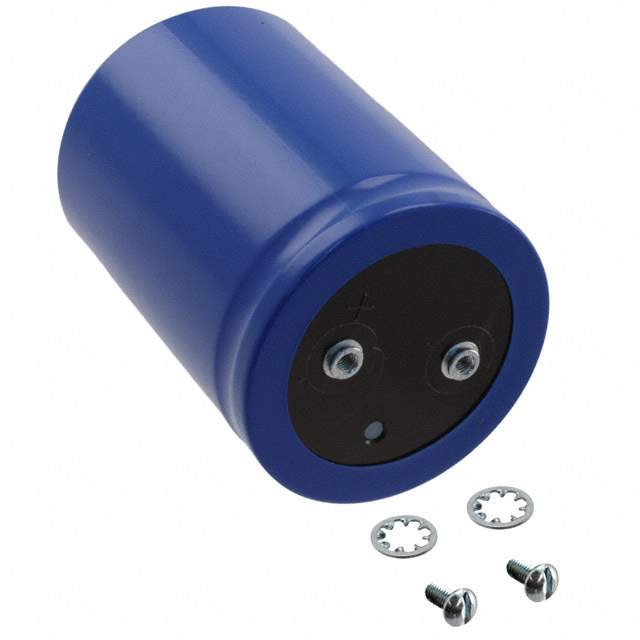

E36D800HPN104MEE3M Real Image
Same model may have multiple batches, images only for reference.

E36D800HPN104MEE3M

Part No E36D800HPN104MEE3M
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100000UF 20% 80V SCREW / 100000 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5.5mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series U36D
Package Bulk
Product Status Obsolete
Capacitance 100000 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 5.5mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 21.42 A @ 120 Hz
Ripple Current @ High Frequency 29.988 A @ 3 kHz
Lead Spacing 1.252" (31.80mm)
Size / Dimension 3.000" Dia (76.20mm)
Height - Seated (Max) 5.625" (142.88mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Standard Package 16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0085
Win Source Part Number 1351716-E36D800HPN104MEE3M
Ultra Librarian 3D Model Ultra Librarian E36D800HPN104MEE3M CAD Model

Description

The U36D series from United Chemi-Con is a range of aluminum electrolytic capacitors designed for general purpose use.

  • Capacitance: 100000 µF
  • Voltage Rating: 80 V
  • Tolerance: ±20%
  • Mounting Type: Chassis Mount
  • Package: Radial, Can - Screw Terminals
  • Ripple Current: 21.42 A @ 120 Hz and 29.988 A @ 3 kHz
  • ESR: 5.5mOhm @ 120Hz
  • Lifetime: 2000 hours @ 85°C
  • Polarization: Polarized
  • Package Size: 3.000" Dia (76.20mm)
  • Height Seated: 5.625" (142.88mm)
