Same model may have multiple batches, images only for reference.

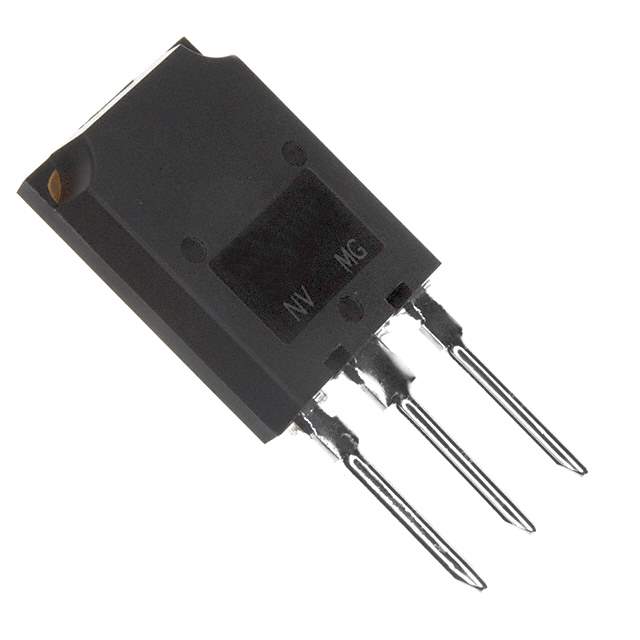

IRFPS30N60KPBF Real Image
Same model may have multiple batches, images only for reference.

IRFPS30N60KPBF

Part No IRFPS30N60KPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 30A SUPER247
Datasheet
IRFPS30N60KPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 220nC @ 10V
Max Input Capacitance 5870pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 450W (Tc)
Maximum Rds On at Id,Vgs 190 mOhm @ 18A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Dimension TO-274AA
Win Source Part Number 1047003-IRFPS30N60KPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFPS30N60KPBF CAD Model

Description

The Vishay IRFPS30N60KPBF is a MOSFET transistor manufactured by Vishay.

  • Maximum Power Dissipation: 450W
  • Maximum Drain-Source Breakdown Voltage: 600V
  • Package: SUPER-247 (TO-274AA)
  • Maximum Continuous Drain Current: 30A @ 25°C
  • Solution For: a wide range of applications, including power supplies, motor control circuits, and audio amplifiers
