The Vishay 097472-SI1305DL-T1-E3 is a P-channel MOSFET designed for use in discrete semiconductor products.

• Mounting: SMD (SMT)
• Drain-Source Breakdown Voltage: 8V
• Maximum Rds On: 280 mOhm @ 1A, 4.5V
• Maximum Gate-Source Voltage: ±8V
• Maximum Gate Charge: 4nC @ 4.5V
• Drive Voltage: 1.8V to 4.5V
• Gate-Source Threshold Voltage: 450mV @ 250μA (Min)
• Continuous Drain Current @ 25°C: 860mA (Ta)
• Power Dissipation (max): 290mW (Ta)
• Status: Obsolete (EOL)
• Temperature Range: -55°C to 150°C (TJ)

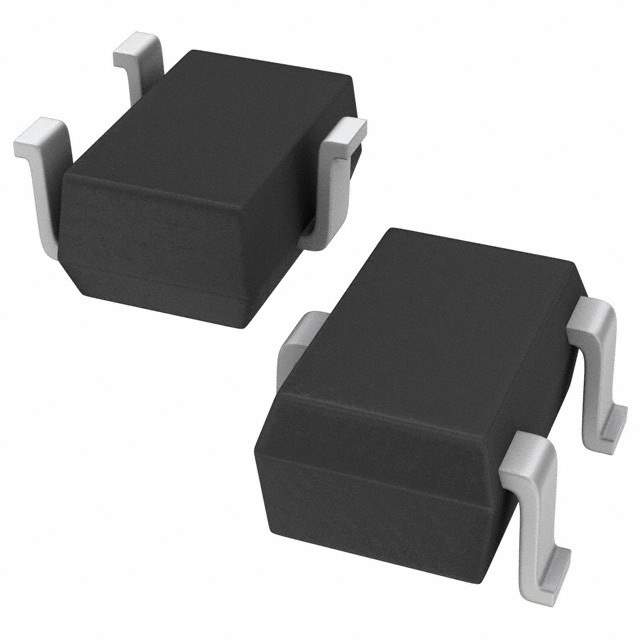

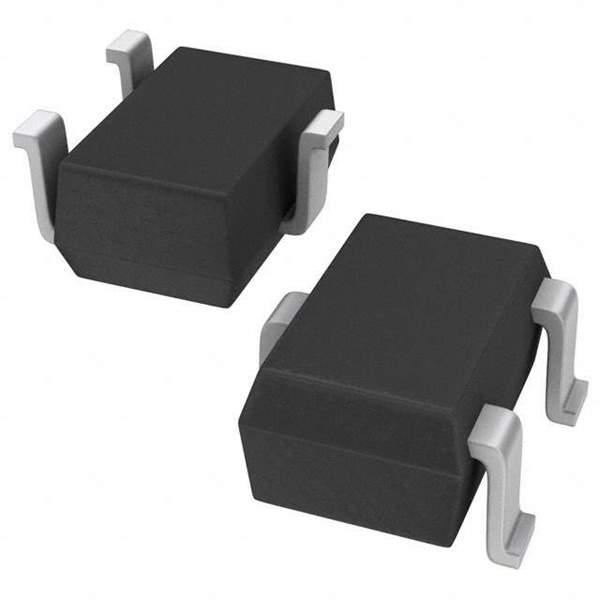

• Package: SC-70-3
• Dimensions: SC-70, SOT-323
• Usage: Common-used part
• Popularity: High
• Supply and Demand: Sufficient
