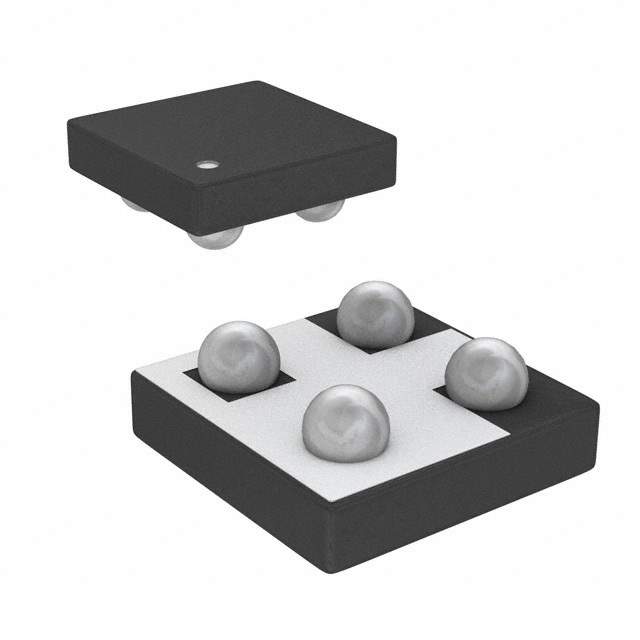

SI8401DB-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

SI8401DB-T1-E3

Part No SI8401DB-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 3.6A 2X2 4-MFP
Datasheet
SI8401DB-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.4V @ 250μA
Max Gate Charge 17nC @ 4.5V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.47W (Ta)
Maximum Rds On at Id,Vgs 65 mOhm @ 1A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-Microfoot
Dimension 4-XFBGA, CSPBGA
Win Source Part Number 064585-SI8401DB-T1-E3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SI8401DB-T1-E3 CAD Model

Description

The Vishay SI8401DB-T1-E3 is a P-channel MOSFET with a drain-source breakdown voltage of 20V and a continuous drain current of 3.6A @ 25°C.

  • Rds On @ Id,Vgs (Max): 65 mOhm @ 1A, 4.5V
  • Gate Charge (Max): 17nC @ 4.5V
  • Mounting Type: SMD (SMT)
  • Package: 4-XFBGA, CSPBGA
  • Gate-Source Voltage (Max): ±12V
