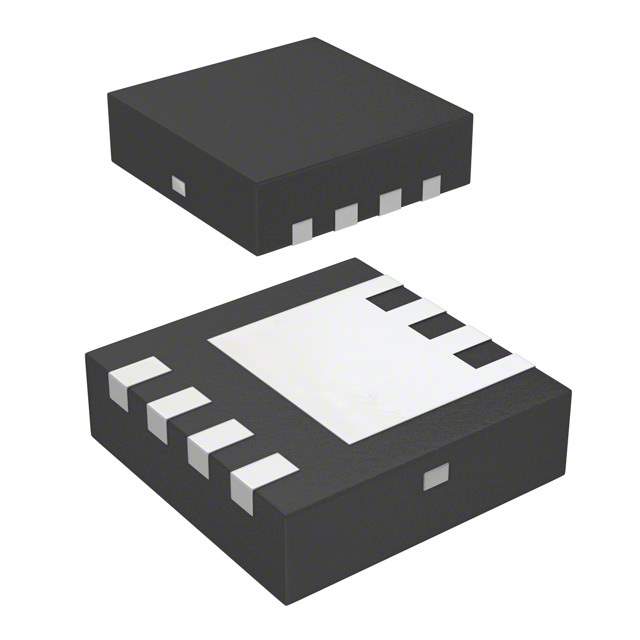

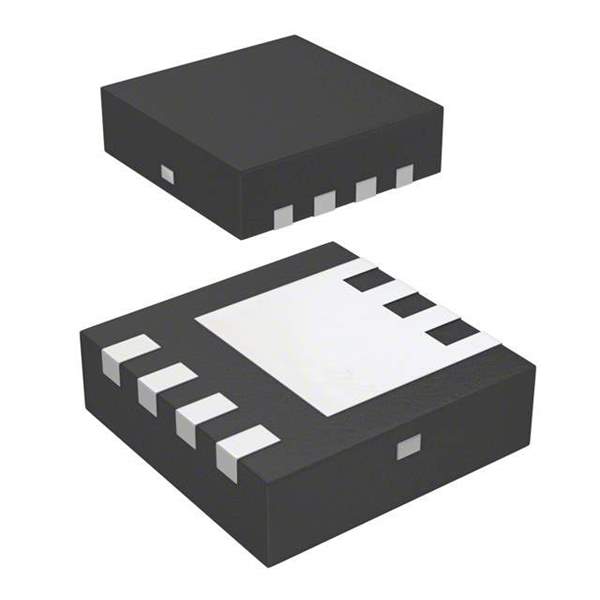

SISH472DN-T1-GE3

Name: SISH472DN-T1-GE3
Brand: Vishay
SKU: 1093133
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SISH472DN-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 15A/20A PPAK / N-Channel 30 V 15A (Ta), 20A (Tc) 3.5W (Ta), 28W (Tc) Surface Mount PowerPAK® 1212-8SH
Datasheet	SISH472DN-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	TrenchFET®
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	997 pF @ 15 V
Power Dissipation (Max)	3.5W (Ta), 28W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® 1212-8SH
Package / Case	PowerPAK® 1212-8SH
Base Product Number	SISH472
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SISH472DN-T1-GE3TR,SISH472DN-T1-GE3CT,SISH472DN-T1-GE3DKR
Standard Package	3,000
Win Source Part Number	1093133-SISH472DN-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SISH472DN-T1-GE3 CAD Model

Alternative Products

Description

The Vishay SISH472DN-T1-GE3 is an N-channel MOSFET designed for use in discrete semiconductor products.

Drain to Source Voltage: 30V
Continuous Drain Current: 15A @ 25°C
Rds On (Max) @ Id, Vgs: 8.9mOhm @ 15A, 10V
Vgs (Max): ±20V
Operating Temperature Range: -55°C to 150°C
Packaging: Tape and Reel
Gate Charge: 30 nC @ 10Vgs
Input Capacitance: 997 pF @ 15Vds
Power Dissipation: 3.5W (Ta), 28W (Tc)
Package: PowerPAK® 1212-8SH case
