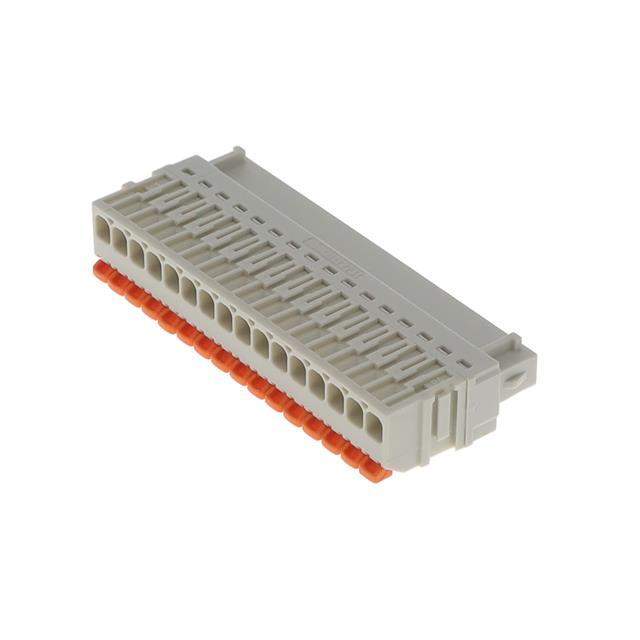

Same model may have multiple batches, images only for reference.

2734-1116/327-000

Get a Quote

Part No	2734-1116/327-000
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	TERM BLK PLUG 16POS LEVER 14-26 / 16 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMINI
Package	Bulk
Type	Plug, Female Sockets
Number of Positions	16
Positions Per Level	16
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	10A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-26 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	Lever Actuated
Material Flammability Rating	UL94 V-0
Wire Strip Length	9-10mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66) , Nylon 6/6
Insulation Height	0.393" (9.98mm)
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1351025-2734-1116/327-000
Ultra Librarian 3D Model	Ultra Librarian 2734-1116/327-000 CAD Model

Alternative Products

Description

The MCSMINI series terminal block is a plug and female sockets type connector designed for use in various electronic devices.

Positions Per Level: 16
Pitch: 0.138” (3.50mm)
Termination Style: Screwless Push-In Spring
Current Rating: 10A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Wire Gauge: 14-26 AWG or 0.14-1.5mm2
Actuation: Lever Actuated
Contact Material: Copper Alloy
Contact Mating Finish: Tin
Housing Material: Polyamide (PA66) and Nylon 6/6
Color: Gray
Insulation Height: 0.393” (9.98mm)
Operating Temperature: -60°C to 100°C
