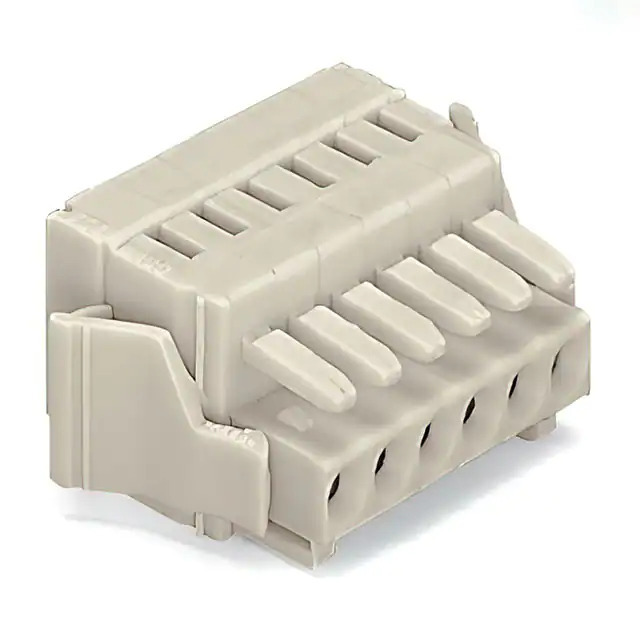

Same model may have multiple batches, images only for reference.
734-103/037-000 WAGO Corporation
Same model may have multiple batches, images only for reference.

734-103/037-000

Part No 734-103/037-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR FEMALE PLUG; 100% PR / 3 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMINI
Package Box
Product Status Active
Type Plug, Female Sockets
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 10A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 14-28 AWG
Wire Gauge or Range - mm² 0.08-1.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features Lever Actuated, Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length 6-7mm
Contact Material Copper Alloy
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length -
Insulation Height 0.528" (13.40mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364643-734-103/037-000
Ultra Librarian 3D Model Ultra Librarian 734-103/037-000 CAD Model

Description

The 1364643-734-103/037-000 is a terminal block header, plug, and socket connector from WAGO Corporation.

  • Series: MCSMINI
  • Application: Connectors and Interconnects
  • Temperature Range: -60°C to 100°C
  • Connector Type: Plug and Female Socket
  • Number of Positions: 3
  • Actuation: Lever
  • Retention: Retention Latches on Non-Wire Side
  • Termination Style: Screwless Push-In Spring
  • Contact Material: Copper Alloy
  • Housing Material: Polyamide (PA66) and Nylon 6/6
