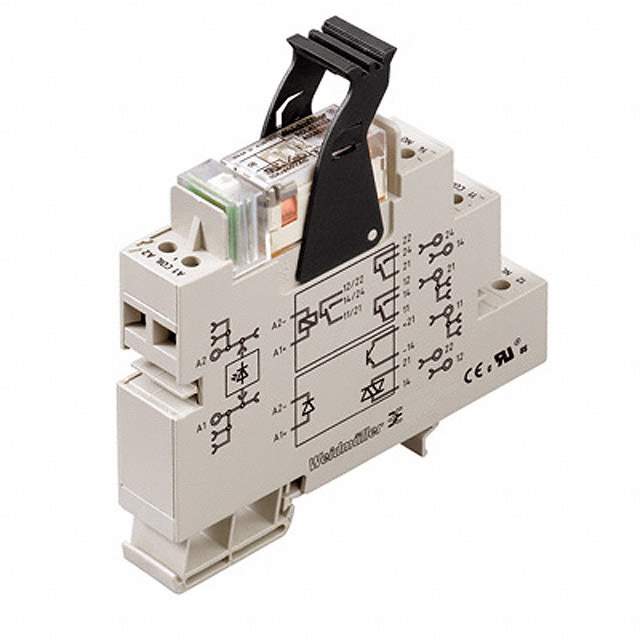

8530671001 Real Image1 8530671001 Real Image2
Same model may have multiple batches, images only for reference.
8530671001 Real Image1 8530671001 Real Image2
8530671001 Real Image1 8530671001 Real Image2
Same model may have multiple batches, images only for reference.

8530671001

Part No 8530671001
Manufacturer Weidmuller
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 230V / General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail
Datasheet
8530671001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Weidmuller
Series PRS
Package Bulk
Product Status Obsolete
Mounting Type DIN Rail
Coil Voltage 230VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 4.2 mA
Coil Type Non Latching
Features Lighted Indicator, Socket Included
Termination Style Screw Terminal
Seal Rating -
Coil Insulation -
Must Operate Voltage 172.5 VAC
Must Release Voltage 34.5 VAC
Temperature Range - Operating -40°C ~ 50°C
Contact Material -
Relay Type General Purpose
Coil Resistance 32.5 kOhms
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0050
Standard Package 1 pcs
Win Source Part Number 1381201-8530671001
Ultra Librarian 3D Model Ultra Librarian 8530671001 CAD Model

Description

The PRS power relay, manufactured by Weidmuller, is a reliable and versatile relay for power applications.

  • Relay Type: SPDT (1 Form C)
  • Termination Style: Screw Terminal
  • Features: Lighted Indicator, Socket
  • Coil Voltage: 230VAC
  • Coil Resistance: 32.5 kOhms
  • Coil Current: 4.2 mA
  • Contact Current Rating: 10 A
  • Switching Voltage: 250VAC max
  • Mounting: DIN Rail
  • Operating Temperature: -40°C to 50°C
  • Status: Obsolete
