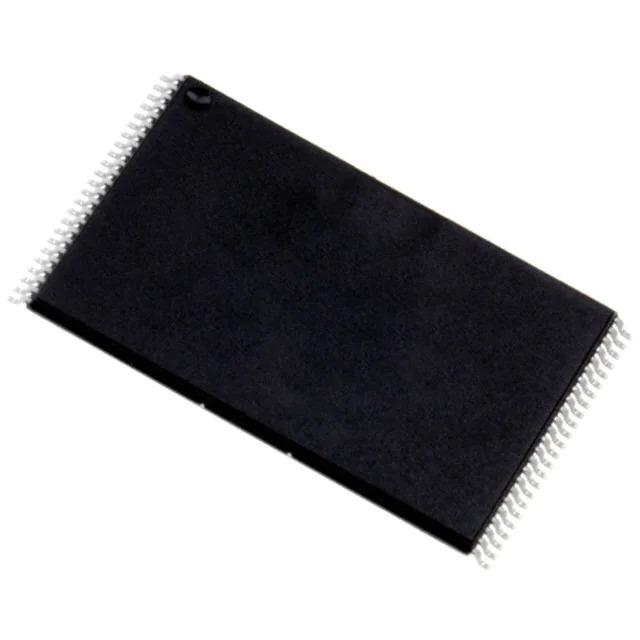

Same model may have multiple batches, images only for reference.
W29N02KVSIAF Winbond Electronics
Same model may have multiple batches, images only for reference.

W29N02KVSIAF

Part No W29N02KVSIAF
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 2GBIT PARALLEL 48TSOP / FLASH - NAND (SLC) Memory IC 2Gbit Parallel 25 ns 48-TSOP
Datasheet
W29N02KVSIAF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series -
Package Tray
Product Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NAND (SLC)
Memory Size 2Gbit
Memory Organization 256M x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 25ns
Access Time 25 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-TFSOP (0.724", 18.40mm Width)
Supplier Device Package 48-TSOP
Base Product Number W29N02
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1354358-W29N02KVSIAF
Ultra Librarian 3D Model Ultra Librarian W29N02KVSIAF CAD Model

Description

The Winbond Electronics W29N02KVSIAF is a 2Gbit NAND flash memory.

  • Temperature Range: -40°C to 85°C
  • Voltage - Supply: 2.7V ~ 3.6V
  • Memory Type: FLASH
  • Memory Format: FLASH
  • Memory Organization: 256M x 8
  • Memory Interface: Parallel
  • Access Time: 25ns
  • Write Cycle Time - Word, Page: 25ns
  • Package / Case: 48-TFSOP (0.724", 18.40mm Width)
  • Mounting Type: Surface Mount
