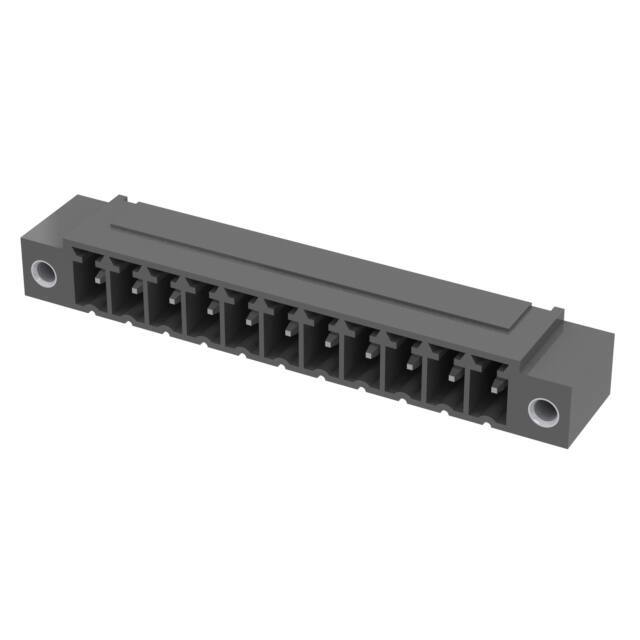

691701320011B Wurth Electronics Inc
Same model may have multiple batches, images only for reference.

691701320011B

Part No 691701320011B
Manufacturer Wurth Electronics Inc
Catalog Headers, Plugs and Sockets
Description 3.81 MM TERMINAL BLOCK HEADER, V
Datasheet
691701320011B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Würth Elektronik
Series WR-TBL Series 7013B
Package Tape & Reel (TR)
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Positions Per Level 11
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC -
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Black
Temperature Range - Operating -40°C ~ 105°C
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Brass
Housing Material Liquid Crystal Polymer (LCP)
Contact Tail Length 0.102" (2.60mm)
Insulation Height 0.362" (9.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377565-691701320011B
Ultra Librarian 3D Model Ultra Librarian 691701320011B CAD Model

Description

The 691701320011B is a terminal block header manufactured by Würth Elektronik.

  • Connector Type: Header, Male Pin
  • Shrouding: Shrouded, All Sides
  • Mounting Type: Through Hole
  • Packaging: Tape & Reel (TR)
  • Series: WR-TBL Series 7013B
  • Color: Black
  • Number of Positions: 11
  • Insulation Height: 0.362" (9.20mm)
  • Contact Material: Brass
  • Contact Mating Finish: Tin
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40°C ~ 105°C
  • Current Rating: 10 A
  • Voltage Rating: 300 V
  • REACH Status: REACH unaffected
  • ECCN: EAR99
