Same model may have multiple batches, images only for reference.

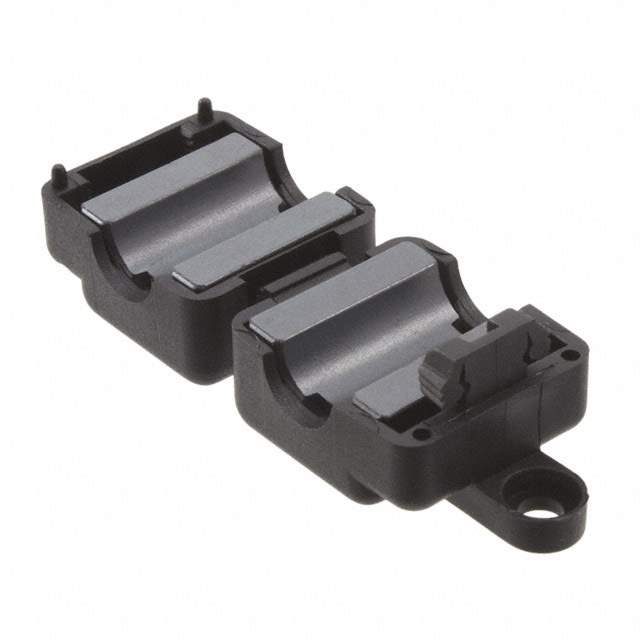

7427153S Real Image
Same model may have multiple batches, images only for reference.

7427153S

Part No 7427153S
Manufacturer Wurth Electronics Inc
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 165 OHM HINGED 8MM  /  Hinged (Snap On), Key Required Chassis Mount Ferrite Core 165Ohm @ 100MHz ID 0.315" Dia (8.00mm) OD 1.181" W x 0.787" H (30.00mm x 20.00mm) Length 0.787" (20.00mm)
Datasheet
7427153S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Cable Ferrites
Mfr Würth Elektronik
Series Star-Ring
Package Tray
Type Round
Design Hinged (Snap On), Key Required
Impedance @ Frequency 165Ohm @ 100MHz
Material 4W620
Inner Dimension 0.315" Dia (8.00mm)
Outer Dimension 1.181" W x 0.787" H (30.00mm x 20.00mm)
Mounting Type Chassis Mount
Length 0.787" (20.00mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8547.10.8000
Other Names 732-3617
Standard Package 40
Win Source Part Number 1227151-7427153S
Ultra Librarian 3D Model Ultra Librarian 7427153S CAD Model

Description

The Würth Elektronik Star-Ring 732-3617 is a round cable ferrite designed for use in filters. It is packaged in a tray, and has a length of 0.787" (20.00mm).

  • Impedance @ Frequency: 165Ohm @ 100MHz
  • Feature: hinged (snap on), key required
  • Inner Dimension: 0.315" Dia (8.00mm)
  • Outer Dimension: 1.181" W x 0.787" H (30.00mm x 20.00mm)
  • Mounting Type: chassis mount
  • Material: 4W620
  • Supplied by: Würth Elektronik
