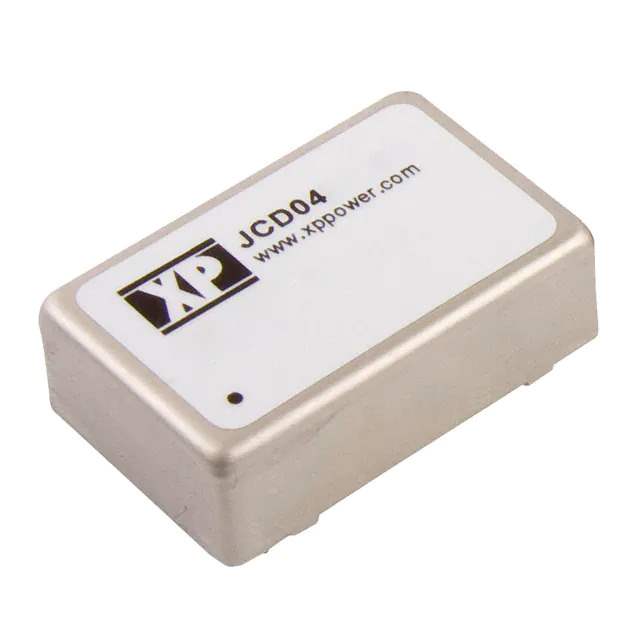

JCD0412D09 Real Image
Same model may have multiple batches, images only for reference.

JCD0412D09

Part No JCD0412D09
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 4W
Datasheet
JCD0412D09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCD (4W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 220mA
Power (Watts) 4 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Standard Number 62368-1
Base Product Number JCD0412
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 846969-JCD0412D09
Ultra Librarian 3D Model Ultra Librarian JCD0412D09 CAD Model

Description

The JCD (4W) series from XP Power is an isolated module for board mount DC-DC converters.

  • Size: 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
  • Power Rating: 4W
  • Outputs: Two (9V and -9V)
  • Input Voltage: 9V to 18V
  • Maximum Output Current: 220mA
  • Protection: OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection)
  • Package: Tube
  • Mounting: Through-Hole
  • Product Status: Active
  • Standard Number: 62368-1
