The ZXCL250H5 is a current monitor designed for applications requiring precise current sensing. It is manufactured by Zetex Semiconductors, now part of Diodes Incorporated.

Applications:

• Power Supply Monitoring: Monitors output current in power supplies.
• Battery Charging Circuits: Senses charging current in battery chargers.
• Overcurrent Protection: Provides overcurrent protection in various circuits.
• Motor Control Circuits: Monitors current in motor control applications.
• LED Lighting: Used in LED drivers to monitor current.

Features:

• High Accuracy: Provides accurate current sensing.
• Low Offset Voltage: Minimizes errors in current measurement.
• Wide Input Voltage Range: Operates over a wide range of input voltages.
• Small Package Size: Compact package for space-constrained applications.
• Low Supply Current: Consumes minimal power.
• Adjustable Gain: Allows for adjusting the output voltage based on the sensed current.

Benefits:

• Precise Current Measurement: Provides accurate current readings for monitoring and control.
• Improved System Protection: Enables overcurrent protection, preventing damage to components.
• Efficient Power Management: Helps optimize power consumption by monitoring current.
• Compact Design: Small package size allows for integration into miniaturized devices.

Additional Details:

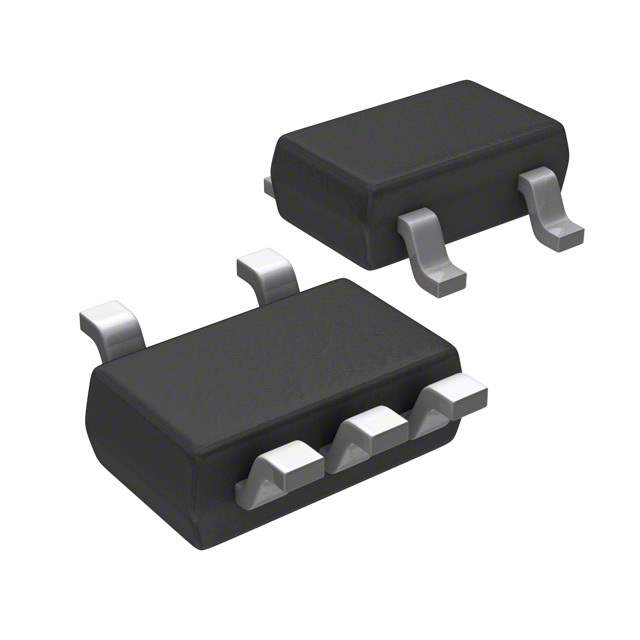

The ZXCL250H5 operates by measuring the voltage drop across a sense resistor in the current path. This voltage drop is proportional to the current flowing through the resistor. The ZXCL250H5 amplifies this voltage drop and provides an output voltage that is proportional to the current. The device's key parameters include its gain, offset voltage, and input voltage range. The datasheet provides detailed information on these parameters, as well as the device's operating temperature range and other specifications. The package is a surface-mount type, facilitating automated assembly processes.
