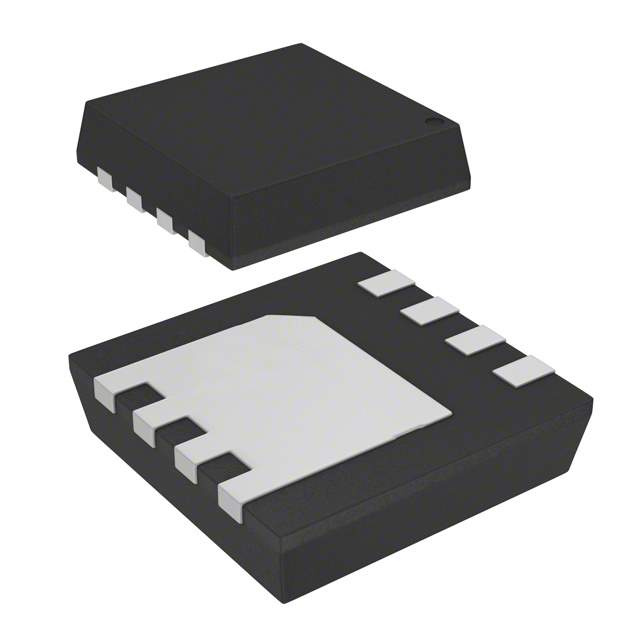

AON7292 Real Image
Same model may have multiple batches, images only for reference.

AON7292

Part No AON7292
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 23A 8DFN
Datasheet
AON7292 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 9A (Ta), 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.6V @ 250μA
Max Gate Charge 25nC @ 10V
Max Input Capacitance 1170pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 4.1W (Ta), 28W (Tc)
Maximum Rds On at Id,Vgs 24 mOhm @ 9A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN-EP (3.3x3.3)
Dimension 8-PowerWDFN
Win Source Part Number 1017124-AON7292
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AON7292 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON7292 MOSFET is a high-performance N-Channel device that is suitable for use in a wide range of applications.

  • Power Dissipation: 4.1W (Ta), 28W (Tc)
  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current: 9A (Ta), 23A (Tc)
  • Gate-Source Threshold Voltage: 2.6V @ 250μA
  • Maximum Gate Charge: 25nC @ 10V
  • Package: 8-DFN-EP (3.3x3.3)
  • Maximum Input Capacitance: 1170pF @ 50V
  • Supply: Limited Supply
