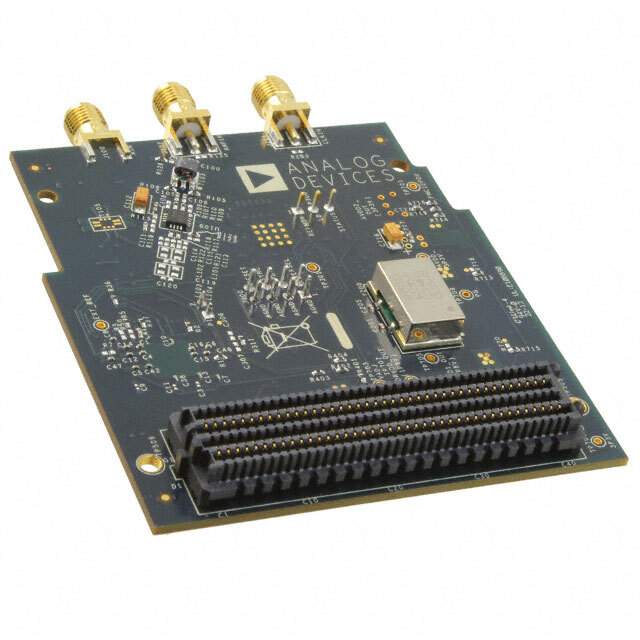

AD9265-FMC-125EBZ Evaluation Board by Analog Devices Inc.

The AD9265-FMC-125EBZ is a high-performance evaluation board offered by Analog Devices Inc., designed to showcase the capabilities of the AD9265 Analog-to-Digital Converter (ADC). This ADC is a 16-bit, 125 MSPS (Mega Samples Per Second) device that delivers exceptional accuracy and noise performance, making it ideal for a wide range of applications, including medical imaging, communications, and instrumentation.

The evaluation board is equipped with the FMC (FPGA Mezzanine Card) connector, which allows it to be easily interfaced with any FPGA development board that supports the FMC standard. This feature provides designers with a flexible and rapid prototyping environment, enabling quick integration into existing systems or for use in developing new products.

Key Features of the AD9265-FMC-125EBZ:

• High-Performance ADC: The board includes the AD9265 ADC, which offers 16-bit resolution at a sampling rate of 125 MSPS, ensuring high-fidelity signal representation.
• Flexible Interface: With the FMC connector, the evaluation board can be easily connected to a variety of FPGA platforms, facilitating seamless system development and testing.
• Comprehensive Software Support: Analog Devices provides software tools that allow users to control and monitor the performance of the ADC through a user-friendly interface, simplifying the evaluation process.
• Power Supply Options: The board supports several power supply configurations, giving users the flexibility to select the optimal power scheme for their specific application.
• Reference Clock: An onboard reference clock is provided, ensuring that the ADC is driven with a clean, stable clock signal for accurate data conversion.

The AD9265-FMC-125EBZ also comes with detailed documentation, including schematics, layout files, and bill of materials, which can significantly reduce development time and help engineers understand the intricacies of the board's design.

Whether you are working on high-speed data acquisition, radar systems, or any other application that requires precise digital representation of analog signals, the AD9265-FMC-125EBZ evaluation board is an excellent tool to expedite your development process and achieve a faster time-to-market.

For more information, visit the Analog Devices Inc. website, where you can access datasheets, user guides, and technical support for the AD9265-FMC-125EBZ and other products.
