Product Overview: HMC558LC3BTR from Analog Devices Inc.

The HMC558LC3BTR is a high-performance, double-balanced mixer product designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This device is part of their Hittite Microwave product line and is tailored for RF and microwave applications that require a wide bandwidth and high linearity.

Key Features

• Frequency Range: The HMC558LC3BTR operates over a broad frequency range, making it versatile for various applications. It supports an RF and LO frequency from 6 GHz to 10 GHz and an IF frequency from DC to 4 GHz.
• Conversion Gain: This mixer is designed to provide a conversion gain of 9 dB, which helps in maintaining signal strength during the frequency conversion process.
• High Isolation: It offers excellent isolation between ports, with a typical LO to RF isolation of 40 dB, ensuring minimal leakage and crosstalk between signals.
• Input IP3: With a high third-order intercept point of 25 dBm, the HMC558LC3BTR maintains linearity in complex signal environments, making it ideal for high-performance systems.

Applications

The HMC558LC3BTR is well-suited for a range of applications, including:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space
• Communication systems

Package and Quality

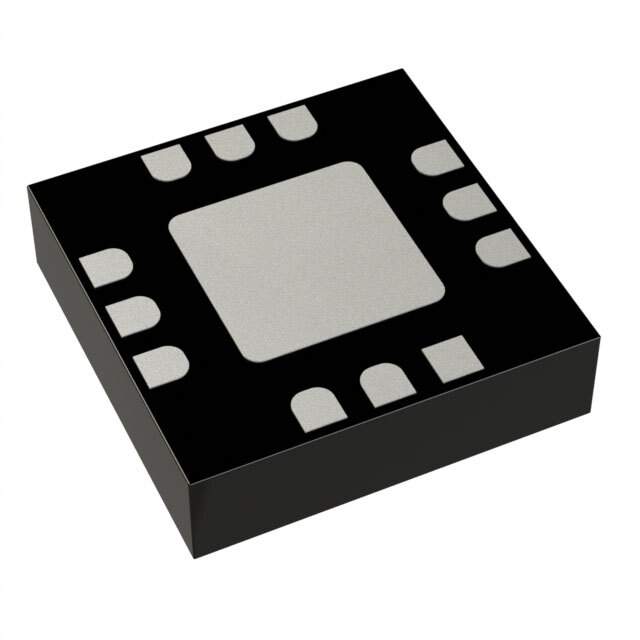

Encased in a compact 3x3 mm ceramic QFN package, the HMC558LC3BTR is designed for space-constrained applications without compromising performance. The device is RoHS compliant and adheres to Analog Devices' rigorous quality standards, ensuring reliability and consistency for your critical design requirements.

Conclusion

The HMC558LC3BTR from Analog Devices Inc. is a testament to their commitment to providing advanced solutions for the RF and microwave industry. Its wide frequency range, high conversion gain, superior isolation, and robust linearity make it a top choice for designers looking to create high-performance systems in communications, military, and test and measurement sectors.
