Same model may have multiple batches, images only for reference.

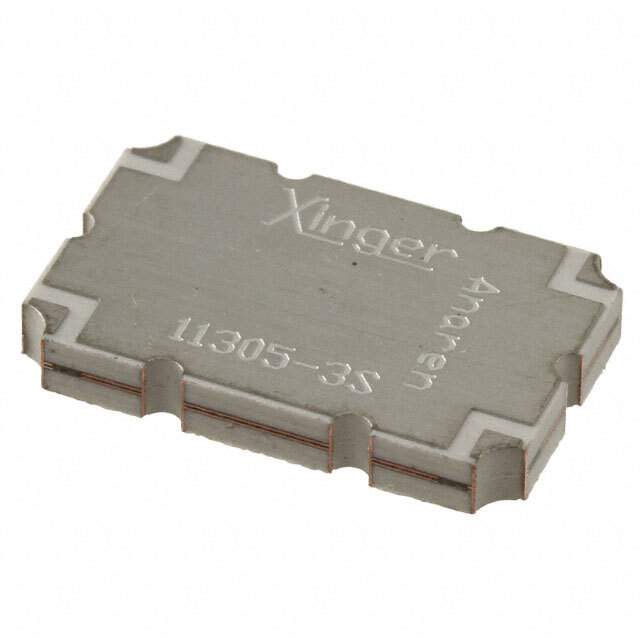

11305-3S Real Image
Same model may have multiple batches, images only for reference.

11305-3S

Part No 11305-3S
Manufacturer Anaren
Catalog RF Directional Coupler
Description Hybrid Couplers 3 dB, 90° | RF DIR COUPLER 1GHZ-2GHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel
Coupler Type Standard
Frequency 1GHz ~ 2GHz
Applications General Purpose
Insertion Loss 0.45dB
Maximum Power 60W
Isolation 20dB
Manufacturer Package 4-SMD, No Lead
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 717129-11305-3S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 11305-3S CAD Model

Description

The Anaren coupler is a standard type coupler with a frequency range of 1GHz to 2GHz.

  • Frequency Range: 1GHz to 2GHz
  • Insertion Loss: 0.45dB
  • Isolation: 20dB
  • Application: General-Purpose
  • Packaging: Reel
  • Manufacturer Package: 4-SMD, no lead
  • Maximum Power Handling: 60W
  • Supply and Demand: Balanced
