Same model may have multiple batches, images only for reference.

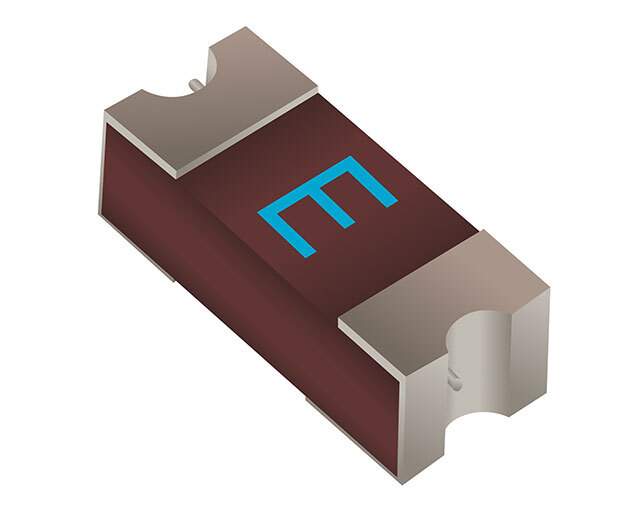

SF-2410FPA700W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2410FPA700W-2

Part No SF-2410FPA700W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2410FPA700W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2410FPA-W
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 7 A
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2410 (6125 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 14.2
Approval Agency cUL, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm)
DC Cold Resistance 0.0097 Ohms
Other Names 118-SF-2410FPA700W-2CT,118-SF-2410FPA700W-2TR,118-SF-2410FPA700W-2DKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302014-SF-2410FPA700W-2
Ultra Librarian 3D Model Ultra Librarian SF-2410FPA700W-2 CAD Model

Description

The SF-2410FPA700W-2 is a board mount fuse designed to protect electronic equipment from overcurrent events. It has a voltage rating of 125V DC with a fast blow response time.

  • Breaking Capacity: 50A @ rated voltage
  • Current Rating: 7A
  • DC Cold Resistance: 0.0097 Ohms
  • Package / Case: 2410 (6125 Metric)
  • Standard Package: 2,000
  • Manufacturer: Bourns Inc.
  • Approvals: cUL, UL
  • Series: SF-2410FPA-W
  • Application: Circuit protection applications
